| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

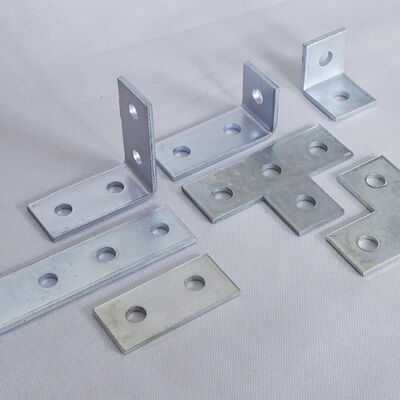

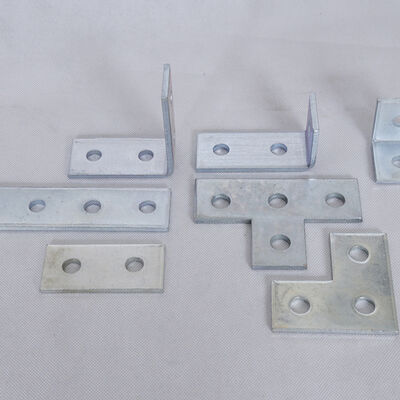

Stainless Steel 304 Unistrut Angle Fittings Custom Strut Channel Corner Support Bracket
Introduction
Our Stainless Steel 304 Unistrut Angle Fittings are high-end anti-corrosion connection accessories designed for high-clean and high-corrosion industrial scenarios. Adopting premium SUS304 stainless steel raw materials, the product abandons traditional carbon steel galvanizing process, with inherent rust-proof, acid-proof and alkali-resistant properties, and can maintain stable performance in humid, chemical and marine environments. The one-piece stamping and polishing process makes the surface smooth and burr-free, with beautiful appearance and no residual processing marks. The standard right-angle structure and precise hole position design are compatible with all conventional specifications of strut channels, realizing flexible assembly and fixing. In addition to standard specifications, we support full personalized customization, including different hole numbers, hole spacing, plate thickness and angle sizes, to meet the special connection needs of non-standard engineering projects. This 304 stainless steel angle fitting is widely used in food processing, pharmaceutical factories, chemical industry, sewage treatment and marine engineering. It has no metal pollution and high sanitary level, which can meet the strict environmental and safety standards of special industries.
Features
Made of standard SUS304 stainless steel, this Unistrut angle fitting has excellent comprehensive corrosion resistance, completely avoiding rust and oxidation problems in humid and corrosive environments. The integrated polishing process ensures a smooth and hygienic surface, no dust accumulation, easy to clean, and meets the sanitary requirements of food and pharmaceutical industries. The stainless steel material has high hardness and good toughness, with strong anti-impact and anti-deformation ability, and long service life up to decades. Support full-scale personalized customization, which can tailor-made sizes and structures according to customer project drawings. Standard hole position design ensures good compatibility with strut channel systems. No galvanized layer falling off, no environmental pollution, safe and environmentally friendly. It has stable performance in extreme environments and is a high-quality customized supporting accessory for high-standard industrial strut channel projects.
Specification
|
Item
|
Technical Specification
|
|---|---|
|
Product Name
|
Unistrut Angle Fittings, Strut Channel Corner Bracket, L-type Angle Connector, 3-Way Wing Angle Fittings
|
|
Applicable Channel
|
41x21mm, 41x41mm Standard Strut Channel, BTB Back-to-Back Strut Channel
|
|
Angle Style
|
90 Degree Right Angle, L Shape, Flat Gusset Plate, 3-Way Multi-directional Type
|
|
Hole Design
|
2 Holes, 4 Holes, 8 Holes, Multi-hole Adjustable, Custom Punching Available
|
|
Plate Thickness
|
2.0mm, 2.5mm, 3.0mm, Thickened Heavy Duty Type, Custom Thickness
|
|
Raw Material
|
Q235B Carbon Steel, Q355 High Strength Steel, SUS304 Stainless Steel, SUS316 Stainless Steel
|
|
Surface Treatment
|
Hot Dip Galvanized(HDG), Pre-Galvanized(GI), Electro-galvanized, Stainless Steel Polished
|
|
Zinc Coating Thickness
|
Electro-galvanized: 8-12μm; Pre-galvanized: 15-25μm; HDG: 60-85μm
|
|
Manufacturing Process
|
Integral One-piece Stamping Forming, No Weld Gap, High Flatness
|
|
Dimensional Tolerance
|
±0.3mm High Precision Dimension & Hole Position Control
|
|
Performance Features
|
Heavy Load Bearing, Anti-deformation, Anti-corrosion, Vibration Resistant, Easy Installation, Reusable
|
|
Application Scenarios
|
Solar Mounting System, HVAC Duct Support, Industrial Pipe Support, Construction Framing, Seismic Bracing, Electrical Equipment Fixing
|
|
Custom Service
|
OEM, ODM, Custom Size, Custom Hole Spacing, Custom Thickness, Custom Logo
|
|
Stock Status
|
Standard Sizes In Stock, Custom Sizes Support Production
|
|
MOQ
|
Small Trial Order Acceptable, Bulk Order Supported
|
|
Packaging
|
Export Standard Carton + Wooden Pallet, Anti-rust & Anti-collision
|
|
Delivery Time
|
3-7 Days for Stock Items; 12-20 Working Days for Custom Orders
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
