| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

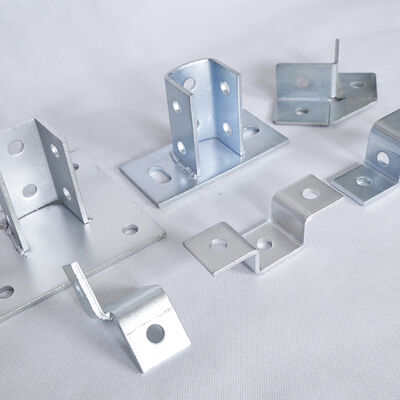

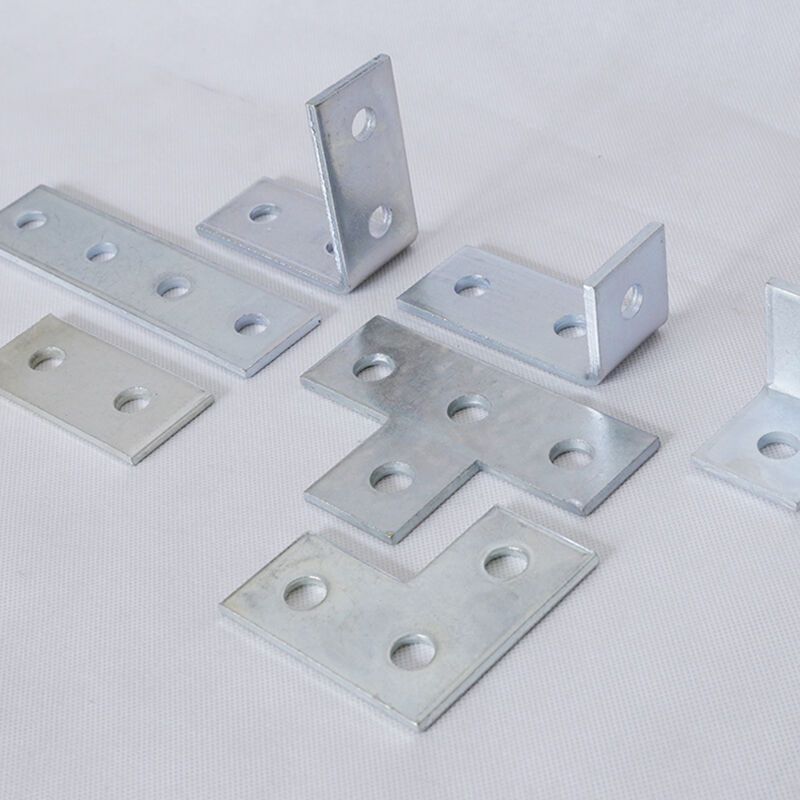

Multi-hole Unistrut Angle Fittings Adjustable Strut Channel Mounting Bracket for Construction
Introduction
Our Multi-hole Unistrut Angle Fittings are flexible adjustable mounting brackets developed for complex construction and multi-directional connection scenarios. Different from single-hole and double-hole fixed brackets, this product adopts multi-hole dense arrangement design, which provides a variety of assembly positions and adjustment ranges for on-site construction. It can realize multi-angle and multi-distance flexible fixing of strut channels, effectively solving the installation problems of irregular engineering structures. Made of high-quality carbon steel and treated with fine galvanization, the product has stable structural strength and good anti-corrosion performance, adapting to various indoor and outdoor construction environments. The multi-hole layout is scientifically arranged with uniform stress, which will not cause local structural weakness due to dense punching. The precise hole diameter ensures smooth matching with standard bolts and nuts, convenient for repeated disassembly and adjustment. Widely used in building construction support, temporary frame fixing, multi-layer pipeline installation and complex structural connection projects, this multi-hole angle fitting greatly improves the flexibility and adaptability of strut channel system installation, and is a versatile adjustable accessory for construction engineering.
Features
The unique multi-hole dense layout design gives this Unistrut angle fitting super strong installation flexibility, supporting multi-position adjustment and multi-directional connection, adapting to complex and irregular construction scenarios. Scientific hole spacing arrangement ensures uniform stress on the bracket, avoiding structural damage caused by excessive punching. High-quality steel material ensures the overall strength and stability of the product, meeting the load-bearing requirements of construction engineering. The galvanized surface effectively prevents rust and corrosion, adapting to long-term outdoor construction use. The product can be disassembled and adjusted repeatedly, with high reuse rate and reduced engineering cost. The universal hole position specification is compatible with all standard strut channel accessories, with strong versatility. It solves the limitation of fixed installation of traditional single-hole brackets, greatly improves the on-site construction flexibility, and is an essential adjustable accessory for diversified construction projects.
Specification
|
Item
|
Technical Specification
|
|---|---|
|
Product Name
|
Unistrut Angle Fittings, Strut Channel Corner Bracket, L-type Angle Connector, 3-Way Wing Angle Fittings
|
|
Applicable Channel
|
41x21mm, 41x41mm Standard Strut Channel, BTB Back-to-Back Strut Channel
|
|
Angle Style
|
90 Degree Right Angle, L Shape, Flat Gusset Plate, 3-Way Multi-directional Type
|
|
Hole Design
|
2 Holes, 4 Holes, 8 Holes, Multi-hole Adjustable, Custom Punching Available
|
|
Plate Thickness
|
2.0mm, 2.5mm, 3.0mm, Thickened Heavy Duty Type, Custom Thickness
|
|
Raw Material
|
Q235B Carbon Steel, Q355 High Strength Steel, SUS304 Stainless Steel, SUS316 Stainless Steel
|
|
Surface Treatment
|
Hot Dip Galvanized(HDG), Pre-Galvanized(GI), Electro-galvanized, Stainless Steel Polished
|
|
Zinc Coating Thickness
|
Electro-galvanized: 8-12μm; Pre-galvanized: 15-25μm; HDG: 60-85μm
|
|
Manufacturing Process
|
Integral One-piece Stamping Forming, No Weld Gap, High Flatness
|
|
Dimensional Tolerance
|
±0.3mm High Precision Dimension & Hole Position Control
|
|
Performance Features
|
Heavy Load Bearing, Anti-deformation, Anti-corrosion, Vibration Resistant, Easy Installation, Reusable
|
|
Application Scenarios
|
Solar Mounting System, HVAC Duct Support, Industrial Pipe Support, Construction Framing, Seismic Bracing, Electrical Equipment Fixing
|
|
Custom Service
|
OEM, ODM, Custom Size, Custom Hole Spacing, Custom Thickness, Custom Logo
|
|
Stock Status
|
Standard Sizes In Stock, Custom Sizes Support Production
|
|
MOQ
|
Small Trial Order Acceptable, Bulk Order Supported
|
|
Packaging
|
Export Standard Carton + Wooden Pallet, Anti-rust & Anti-collision
|
|
Delivery Time
|
3-7 Days for Stock Items; 12-20 Working Days for Custom Orders
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
