| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

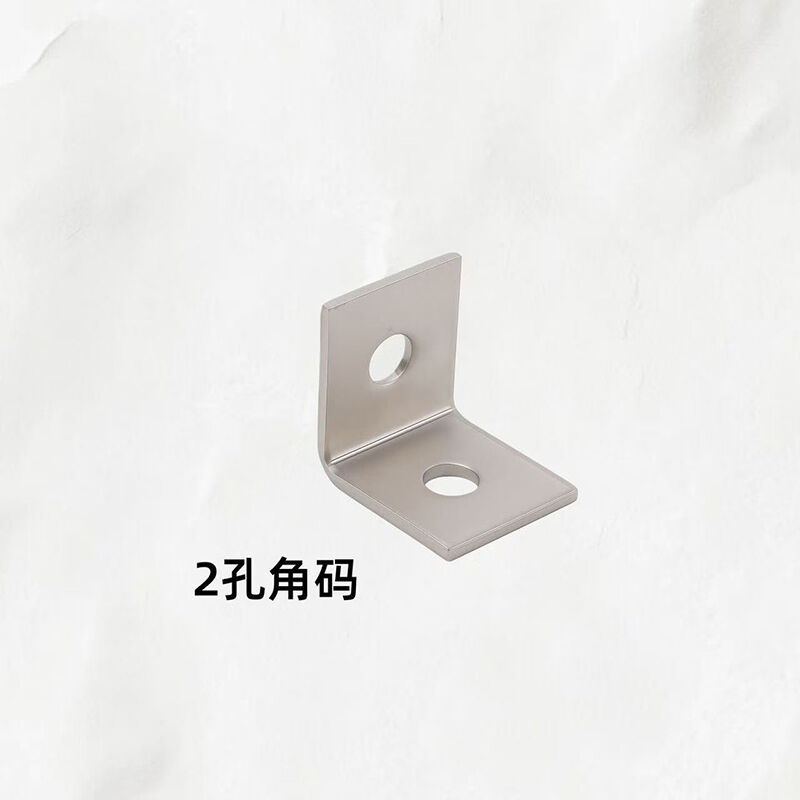

Pre Galvanized Unistrut Angle Fittings L Type Strut Channel Fixing Bracket for HVAC System
Introduction
Our Pre Galvanized Unistrut Angle Fittings are professional L-type fixing brackets specially optimized for HVAC system installation. Adopting pre-galvanized surface treatment process, the product has uniform and smooth zinc layer, good anti-rust performance and high cost performance, which is very suitable for indoor HVAC ventilation, air conditioning pipeline and duct support projects. The standard L-type right-angle structure is designed according to HVAC engineering installation standards, with accurate size and stable structure, which can meet the long-term stable fixing needs of ventilation ducts and air conditioning pipelines. Made of high-quality carbon steel, the bracket has moderate hardness and toughness, which can buffer the slight vibration of HVAC equipment during operation and avoid loose connection. The standard hole position specification is fully compatible with conventional strut channels and matching hardware, realizing fast and convenient installation. Lightweight and compact structure will not cause excessive load on the building wall and ceiling. Widely used in shopping malls, office buildings, industrial workshops and other building HVAC system support installation, this pre-galvanized angle fitting is a cost-effective special accessory for indoor mechanical and electrical installation projects.
Features
Specially optimized for HVAC system installation, this pre-galvanized L-type angle fitting perfectly adapts to the fixing needs of ventilation ducts and air conditioning pipelines. The pre-galvanized process provides uniform and stable anti-rust protection, which is suitable for long-term indoor use with low cost and high cost performance. The reasonable structural design can effectively buffer the vibration generated by HVAC equipment operation and prevent the bracket from loosening and falling off. High-quality carbon steel ensures stable supporting strength, meeting the load-bearing requirements of medium and light-duty HVAC pipelines. The compact structure does not occupy installation space and will not affect the layout and ventilation effect of the air duct system. Standard hole positions realize fast assembly, improve the efficiency of mechanical and electrical installation construction. The product has stable quality and high practicability, and is the preferred special connecting accessory for HVAC engineering strut channel systems.
Specification
|
Item
|
Technical Specification
|
|---|---|
|
Product Name
|

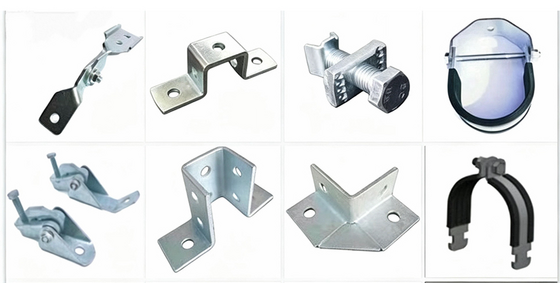

Unistrut Angle Fittings, Strut Channel Corner Bracket, L-type Angle Connector, 3-Way Wing Angle Fittings
|
|
Applicable Channel
|
41x21mm, 41x41mm Standard Strut Channel, BTB Back-to-Back Strut Channel
|
|
Angle Style
|
90 Degree Right Angle, L Shape, Flat Gusset Plate, 3-Way Multi-directional Type
|
|
Hole Design
|
2 Holes, 4 Holes, 8 Holes, Multi-hole Adjustable, Custom Punching Available
|
|
Plate Thickness
|
2.0mm, 2.5mm, 3.0mm, Thickened Heavy Duty Type, Custom Thickness
|
|
Raw Material
|
Q235B Carbon Steel, Q355 High Strength Steel, SUS304 Stainless Steel, SUS316 Stainless Steel
|
|
Surface Treatment
|
Hot Dip Galvanized(HDG), Pre-Galvanized(GI), Electro-galvanized, Stainless Steel Polished
|
|
Zinc Coating Thickness
|
Electro-galvanized: 8-12μm; Pre-galvanized: 15-25μm; HDG: 60-85μm
|
|
Manufacturing Process
|
Integral One-piece Stamping Forming, No Weld Gap, High Flatness
|
|
Dimensional Tolerance
|
±0.3mm High Precision Dimension & Hole Position Control
|
|
Performance Features
|
Heavy Load Bearing, Anti-deformation, Anti-corrosion, Vibration Resistant, Easy Installation, Reusable
|
|
Application Scenarios
|
Solar Mounting System, HVAC Duct Support, Industrial Pipe Support, Construction Framing, Seismic Bracing, Electrical Equipment Fixing
|
|
Custom Service
|
OEM, ODM, Custom Size, Custom Hole Spacing, Custom Thickness, Custom Logo
|
|
Stock Status
|
Standard Sizes In Stock, Custom Sizes Support Production
|
|
MOQ
|
Small Trial Order Acceptable, Bulk Order Supported
|
|
Packaging
|
Export Standard Carton + Wooden Pallet, Anti-rust & Anti-collision
|
|
Delivery Time
|
3-7 Days for Stock Items; 12-20 Working Days for Custom Orders
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
