| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

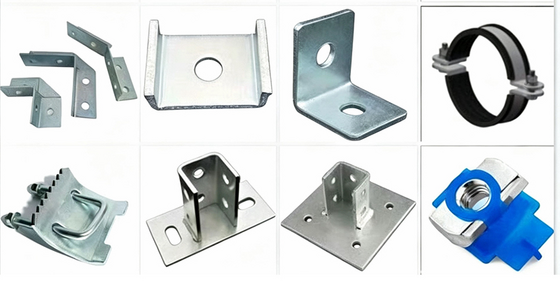

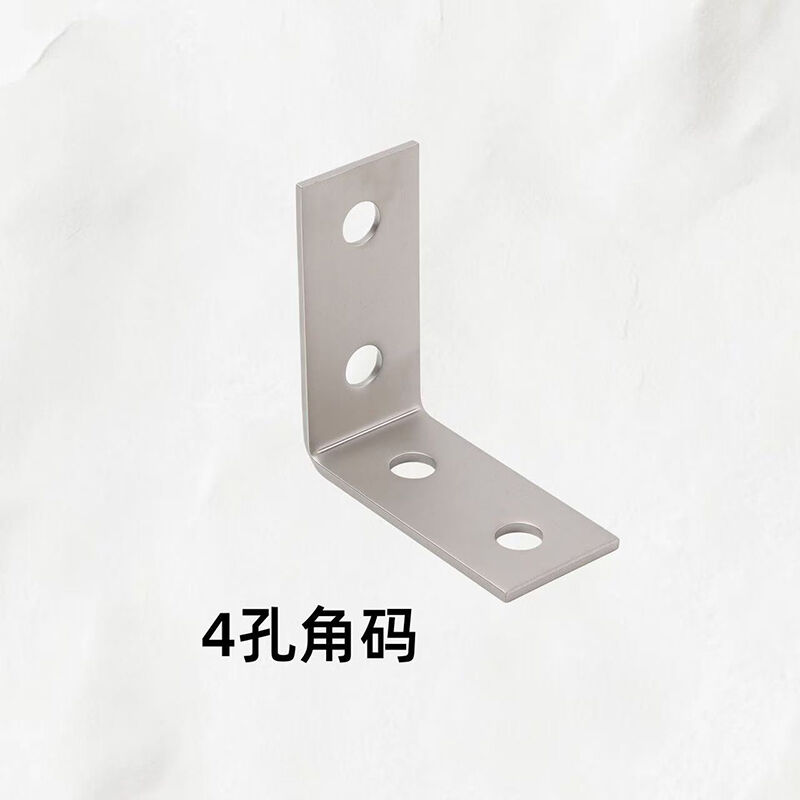

Custom Punching Unistrut Angle Fittings Thickened Steel Strut Channel Support Bracket
Introduction
Our Custom Punching Unistrut Angle Fittings are thickened high-strength support brackets with personalized punching customization service. Based on standard angle brackets, this product adopts thickened steel plate raw materials to comprehensively upgrade the load-bearing capacity and structural stability, solving the deformation problem of ordinary thin plate brackets under heavy load. We provide full custom punching services, including non-standard hole spacing, special hole diameter, multi-hole combination and asymmetric punching, to meet the special installation needs of various non-standard engineering projects. The product is made of high-purity carbon steel, with uniform plate thickness and fine stamping technology, no burrs and no crack deformation. The surface can be matched with pre-galvanized, hot dip galvanized and other processes according to customer needs to adapt to different use environments. It is widely used in special equipment fixing, non-standard pipeline support, customized building frames and special engineering strut channel connection. With professional custom processing capabilities and strict quality control, we can provide customers with one-stop customized bracket solutions to meet diverse and personalized engineering installation requirements.
Features
Adopting thickened steel plate integral molding, this custom punching angle fitting has greatly improved load-bearing capacity and anti-deformation ability, suitable for heavy-duty and special support scenarios. Support full personalized custom punching service, which can tailor hole position, hole spacing and hole diameter according to customer drawings and project needs. The fine stamping process ensures smooth and burr-free hole mouth, convenient assembly and no damage to matching accessories. Diversified surface treatment options adapt to indoor, outdoor and corrosive different environments. The high-strength steel body has stable mechanical properties and long service life. It solves the problem that standard brackets cannot adapt to non-standard engineering installation, with strong flexibility and applicability. Professional customized processing technology ensures product accuracy and consistency, providing high-quality personalized supporting accessories for special engineering projects.
Specification
|
Item
|
Technical Specification
|
|---|---|
|
Product Name
|
Unistrut Angle Fittings, Strut Channel Corner Bracket, L-type Angle Connector, 3-Way Wing Angle Fittings
|
|
Applicable Channel
|
41x21mm, 41x41mm Standard Strut Channel, BTB Back-to-Back Strut Channel
|
|
Angle Style
|
90 Degree Right Angle, L Shape, Flat Gusset Plate, 3-Way Multi-directional Type
|
|
Hole Design
|
2 Holes, 4 Holes, 8 Holes, Multi-hole Adjustable, Custom Punching Available
|
|
Plate Thickness
|
2.0mm, 2.5mm, 3.0mm, Thickened Heavy Duty Type, Custom Thickness
|
|
Raw Material
|
Q235B Carbon Steel, Q355 High Strength Steel, SUS304 Stainless Steel, SUS316 Stainless Steel
|
|
Surface Treatment
|
Hot Dip Galvanized(HDG), Pre-Galvanized(GI), Electro-galvanized, Stainless Steel Polished
|
|
Zinc Coating Thickness
|
Electro-galvanized: 8-12μm; Pre-galvanized: 15-25μm; HDG: 60-85μm
|
|
Manufacturing Process
|
Integral One-piece Stamping Forming, No Weld Gap, High Flatness
|
|
Dimensional Tolerance
|
±0.3mm High Precision Dimension & Hole Position Control
|
|
Performance Features
|
Heavy Load Bearing, Anti-deformation, Anti-corrosion, Vibration Resistant, Easy Installation, Reusable
|
|
Application Scenarios
|
Solar Mounting System, HVAC Duct Support, Industrial Pipe Support, Construction Framing, Seismic Bracing, Electrical Equipment Fixing
|
|
Custom Service
|
OEM, ODM, Custom Size, Custom Hole Spacing, Custom Thickness, Custom Logo
|
|
Stock Status
|
Standard Sizes In Stock, Custom Sizes Support Production
|
|
MOQ
|
Small Trial Order Acceptable, Bulk Order Supported
|
|
Packaging
|
Export Standard Carton + Wooden Pallet, Anti-rust & Anti-collision
|
|
Delivery Time
|
3-7 Days for Stock Items; 12-20 Working Days for Custom Orders
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
