| Brand Name: | Jiucan Metal |
| Model Number: | JC-257 |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T,T/T |
| Supply Ability: | 50 to 80+ tons/day |
Introduction
Product Function

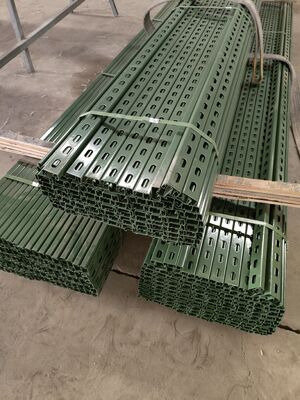

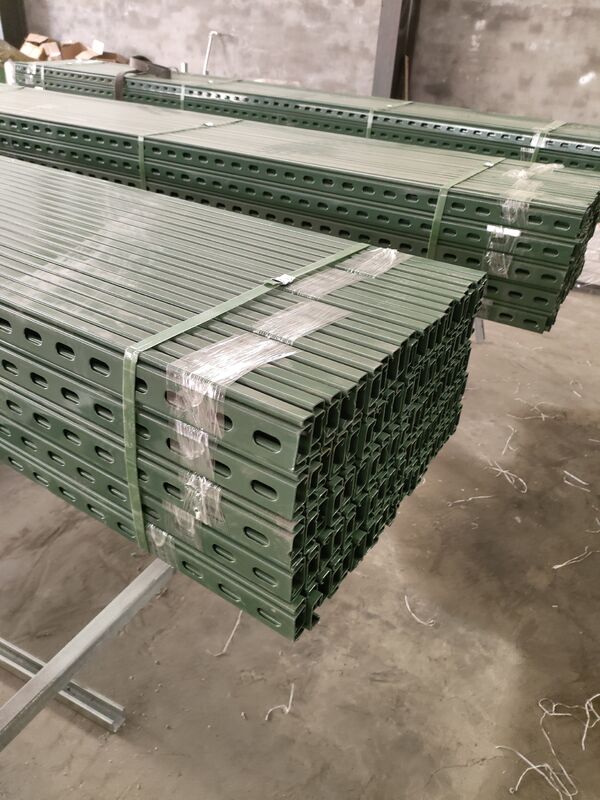

Our factory manufactures powder‑coated C‑channel steel, cold‑formed from Q235 carbon steel. The surface adopts electrostatic powder coating process with complete procedures: degreasing → water rinsing → phosphating/silane conversion treatment → drying → electrostatic powder spraying → high‑temperature curing at 180‑200℃.
The coating is uniform and firm with good corrosion resistance and wear resistance. Custom sizes, punching and RAL color options are available.
Widely applied for roof & wall purlins of steel structure buildings, solar mounting systems, warehouse racks, exhibition frames, industrial equipment frames and modular building supports.
Specification
|
Item
|
Detailed Parameters
|
|---|---|
|
Product Name
|
Metal Strut Channel, Slotted Strut Channel, Unistrut Channel, C/U Channel
|
|
Material
|
Q235 Carbon Steel
|
|
Surface Treatment
|
Powder Coated
|
|
Standard Size
|
41×21mm, 41×41mm, 41×61mm, 41×81mm (Customized)
|
|
Wall Thickness
|
1mm-2.5mm
|
|
Length
|
3m, 6m, Custom Cutting Length
|
|
Hole Type
|
Slotted Hole, Round Hole, Back Hole, Solid Channel
|
|
Structure Type
|
U-type / C-type / Back-to-Back Type
|
|
Load Grade
|
Light Duty, Medium Duty, Heavy Duty
|
|
Tensile Strength
|
375-500MPa
|
|
Yield Strength
|
≥235MPa
|
|
Feature Performance
|
High load-bearing, seismic resistance, corrosion resistance, easy installation, no deformation
|
|
Application Scope
|
Electrical support, pipe support, HVAC system, solar mounting, seismic bracing, construction, infrastructure, data center
|
|
Certification
|
ISO9001, CE, SGS, RoHS
|
|
Production Standard
|
ASTM, BS, DIN, UL, Custom Standard
|
|
MOQ
|
100 Meters / 1 Ton
|
|
Supply Capacity
|
500-1000 Tons/Month
|
|
Package
|
Standard Export Bundle / Pallet Packing
|
|
Delivery Time
|
7-15 Working Days After Deposit
|
|
Custom Service
|
Support OEM, ODM, Custom Size, Hole Type, Surface Color
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
