41x41mm 41x21mm Solid Unistrut Channel Seismic Bracing Strut Channel Manufacturer
Introduction
As a professional manufacturer, we provide 41x41mm/41x21mm and so on sizes Unistrut Channel for seismic bracing systems
Cold-formed one-piece Unistrut Channel, lightweight & high strength. The inner lip design enables fast assembly with spring nuts without on-site drilling for convenient installation.
Widely applied in photovoltaic and seismic support projects, manufactured from low carbon steel.
Pre-galvanized is recommended for indoor & dry areas, while hot-dip galvanizing is preferred for outdoor, rainy and humid environments.
Features
Solid back design provides excellent rigidity and seismic resistance. High-strength material ensures stable performance under dynamic loads. It effectively reduces displacement and damage during earthquakes. Compatible with seismic bracing accessories for fast installation. The channel features high durability, impact resistance, and long service life. It meets professional seismic standards and ensures safety for important infrastructure.
Specification
|
Item
|
Specification
|
|---|---|
|
Product Name
|
41x41 Unistrut Channel, 41x41 Strut Channel, 41x41 U Channel
|
|
Exact Size
|
41 × 41mm/41x21mm Standard Unistrut Profile
|
|
Thickness
|
1.5mm / 2.0mm / 2.5mm / 12GA / 14GA
|

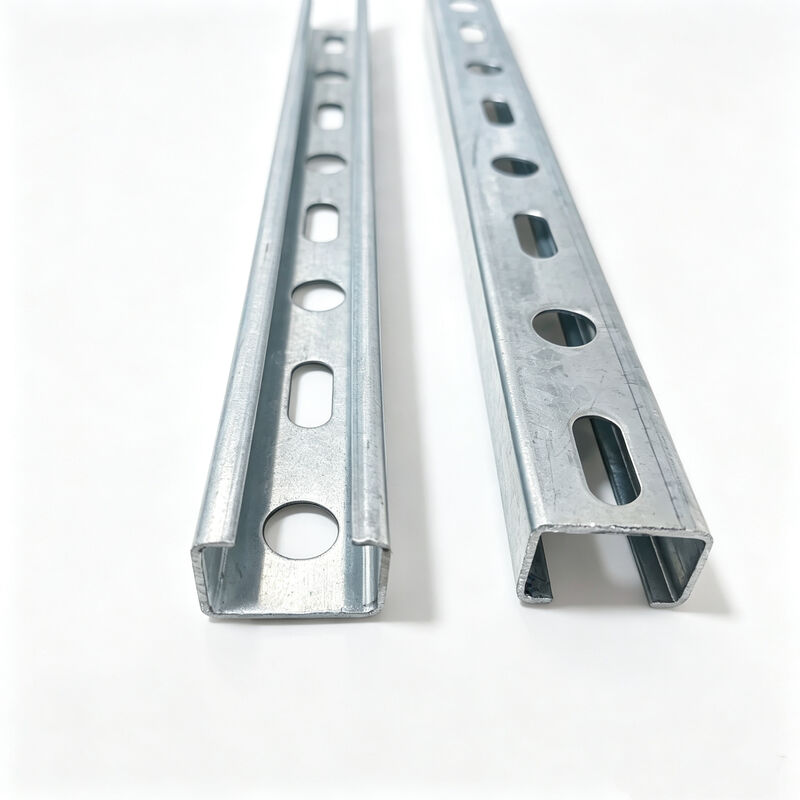

| Type | Slotted/ Solid |
|
Material
|
Q235B / Q195 Carbon Steel, SS304/SS316 Stainless Steel
|
|
Industry Standard
|
ASTM, EN, DIN International Standard
|
|
Surface Finish
|
Pre Galvanized, Hot Dip Galvanized HDG, Powder Coated
|
|
Zinc Coating
|
PG:40–275g/㎡ | HDG:40-85um/㎡
|
|
Standard Length
|
2.95m / 3m / 5.8m / 6m / 10ft / 20ft, Custom Cut Length
|
|
Processing Service
|
Cutting, Punching, Drilling, Bending, Custom Fabrication
|
|
Yield Strength
|
≥235MPa (Q235), ≥355MPa (Q355)
|
|
Tensile Strength
|
≥330MPa (Q235), ≥470MPa (Q355)
|
|
Key Features
|
High load-bearing, anti-corrosion, anti-rust, seismic resistant, easy installation, no deformation, long service life
|
|
Application
|
Pipe support, electrical conduit, cable tray, HVAC, solar mounting, seismic bracing, construction framing, mechanical support
|
|
Compatible Parts
|
Unistrut nuts, bolts, brackets, pipe clamps, seismic fittings, mounting accessories
|
|
Packing
|
Export pallet + waterproof film + woven bag
|
|
MOQ
|
Negotiable, small trial order acceptable
|
|
Delivery Time
|
15 working days
|
|
Payment
|
T/T, L/C, Western Union
|
|
Trade Terms
|
FOB, CIF, EXW
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
