| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

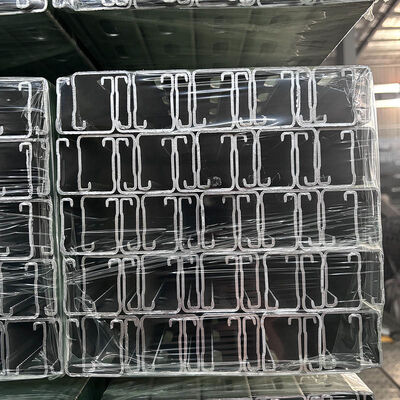

41*41 HDG Unistrut Channel for Solar Mounting System
Introduction
Features
41*41 HDG unistrut channel is professionally designed for solar photovoltaic mounting systems with strong outdoor weather resistance. The hot-dip galvanized layer effectively resists rain erosion, oxidation and ultraviolet aging, ensuring long-term stable operation of solar supports. The square 41*41 structure provides balanced load-bearing performance, which can firmly fix solar panels and mounting frames without deformation. Standard slotted holes support flexible angle adjustment and position fine-tuning, adapting to various solar installation environments. High-strength steel material improves overall structural safety and wind resistance of photovoltaic systems. The product features high dimensional accuracy, good accessory compatibility and convenient on-site assembly. It avoids welding damage and reduces on-site construction difficulty, greatly improving solar project installation efficiency. Durable and maintenance-free, it effectively reduces the operating cost of solar power stations and is ideal for all kinds of solar mounting projects.
Specification
| Parameter Item | Detailed Specification |
| Product Name |
Hot Dip Galvanized Slotted Strut Channel
|
| Raw Material | High-quality Q235B / Q355B carbon steel, prime raw steel coil |
| Surface Treatment | Full hot-dip galvanized (HDG), no cold galvanized / spray painting; integral galvanizing for inner and outer walls |
| Zinc Coating Thickness | 60μm - 120μm (customizable); uniform and adhesive zinc layer, no peeling, no missing plating |
| Standard Sizes (Main) | 41×21mm, 41×41mm, 41×62mm, 41×82mm (full size series available) |
| Wall Thickness | 1.5mm, 2.0mm, 2.5mm (light duty / medium duty / heavy duty optional) |
| Standard Length | 3m / 6m; customized cutting length available according to project requirements |

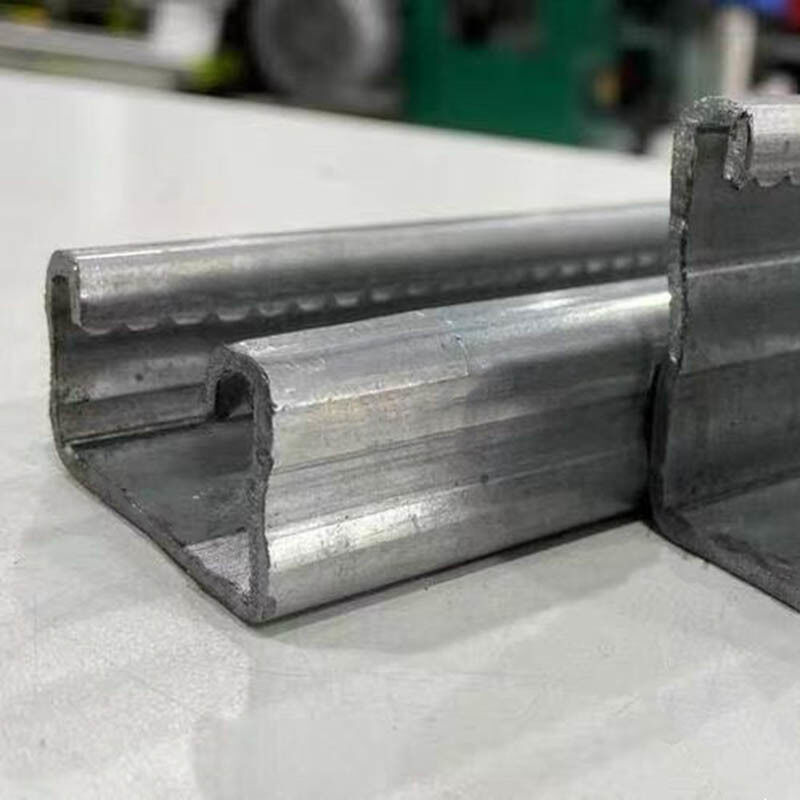

| Structural Feature | Standard C-shaped groove with inward folded lips, long slotted hole design for flexible adjustment |
| Processing Technology | Precision cold-rolled forming, one-piece molding, no secondary welding, smooth surface without burrs |
| Mechanical Performance | High structural rigidity, strong load-bearing capacity, anti-bending, anti-deformation, stable long-term load performance |
| Service Life | 20+ years for outdoor/coastal/humid industrial environments |
| Compatible Accessories | Spring nuts, beam clamps, pipe clamps, seismic brackets, connection fittings (full standard accessories matching) |
| Installation Feature | Modular assembly, no on-site welding/cutting, free position adjustment, high construction efficiency |
| Application Scenarios | Solar mounting system, seismic bracing, HVAC & pipeline support, electrical engineering, building structural support, municipal engineering |
| Quality Standard | Compliant with international construction and industrial support standards, 100% factory inspection before delivery |
| Customization Service | Custom size, special galvanizing thickness, non-standard punching and cutting available |
| Supply Capacity | Factory direct supply, sufficient stock, support bulk wholesale and engineering order customization |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
