| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

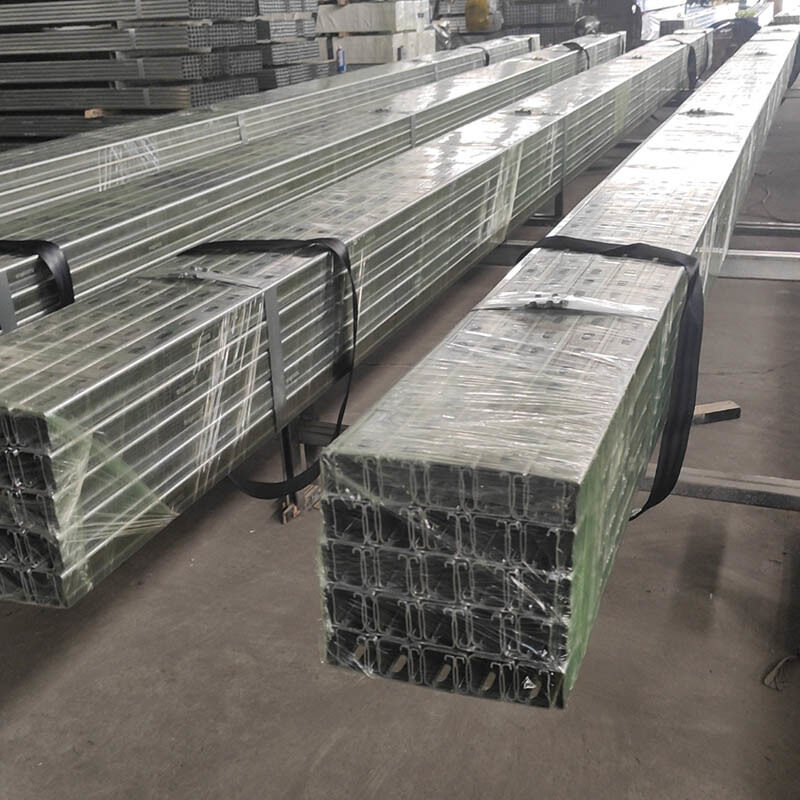

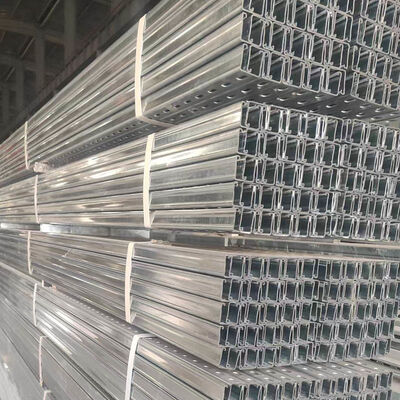

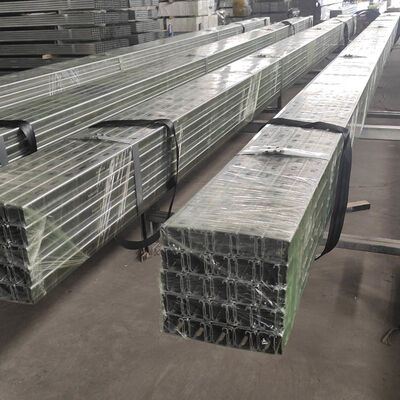

Slotted HDG Unistrut Channel Steel Profile Manufacturer
Introduction
We are a professional manufacturer of slotted HDG unistrut channel steel profiles, focusing on the production and customization of various modular galvanized strut channels. Adopting advanced cold rolling forming technology, our slotted unistrut channel has neat and smooth long slot holes with uniform spacing and precise position, which lays a foundation for flexible installation and free adjustment. The whole steel profile is made of high-quality carbon steel and treated with integral hot-dip galvanizing, so both the outer surface and inner groove wall are covered with dense anti-corrosion zinc layer, effectively avoiding rust and corrosion in humid and industrial environments. The product has stable mechanical properties, high structural rigidity and strong impact resistance, which can maintain stable load-bearing state for a long time. Our factory implements standardized production process, with strict inspection on material thickness, galvanized layer, flatness and size tolerance to ensure consistent product quality. The slotted structural design abandons the traditional fixed installation mode, realizing arbitrary sliding and positioning of accessories along the groove. Widely used in electrical engineering, mechanical equipment fixing, building support and pipeline installation, our slotted HDG unistrut steel profiles provide high-quality modular support solutions for global customers.
Features
Our slotted HDG unistrut channel steel profile adopts precision slotted design to realize free sliding and flexible positioning of accessories. The long slotted structure allows multi-direction adjustment during installation, greatly improving construction flexibility and adaptability. Integral hot-dip galvanizing treatment provides comprehensive anti-corrosion and anti-rust protection for the steel profile. High-strength steel base material ensures excellent load-bearing performance and structural stability, not easy to deform under pressure. The product is produced with standardized process, with smooth surface, no burrs and accurate dimensions, ensuring high matching with all standard accessories. Modular assembly replaces traditional welding construction, reducing construction pollution and improving safety. It is suitable for various complex installation environments and meets diversified engineering needs. As direct factory supply, it features stable quality and cost-effective price, supporting large-scale engineering procurement and long-term cooperative orders.
Specification
| Parameter Item | Detailed Specification |
| Product Name |
Hot Dip Galvanized Slotted Strut Channel
|
| Raw Material | High-quality Q235B / Q355B carbon steel, prime raw steel coil |
| Surface Treatment | Full hot-dip galvanized (HDG), no cold galvanized / spray painting; integral galvanizing for inner and outer walls |
| Zinc Coating Thickness | 60μm - 120μm (customizable); uniform and adhesive zinc layer, no peeling, no missing plating |
| Standard Sizes (Main) | 41×21mm, 41×41mm, 41×62mm, 41×82mm (full size series available) |
| Wall Thickness | 1.5mm, 2.0mm, 2.5mm (light duty / medium duty / heavy duty optional) |
| Standard Length | 3m / 6m; customized cutting length available according to project requirements |
| Structural Feature | Standard C-shaped groove with inward folded lips, long slotted hole design for flexible adjustment |
| Processing Technology | Precision cold-rolled forming, one-piece molding, no secondary welding, smooth surface without burrs |
| Mechanical Performance | High structural rigidity, strong load-bearing capacity, anti-bending, anti-deformation, stable long-term load performance |
| Service Life | 20+ years for outdoor/coastal/humid industrial environments |
| Compatible Accessories | Spring nuts, beam clamps, pipe clamps, seismic brackets, connection fittings (full standard accessories matching) |
| Installation Feature | Modular assembly, no on-site welding/cutting, free position adjustment, high construction efficiency |
| Application Scenarios | Solar mounting system, seismic bracing, HVAC & pipeline support, electrical engineering, building structural support, municipal engineering |
| Quality Standard | Compliant with international construction and industrial support standards, 100% factory inspection before delivery |
| Customization Service | Custom size, special galvanizing thickness, non-standard punching and cutting available |
| Supply Capacity | Factory direct supply, sufficient stock, support bulk wholesale and engineering order customization |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
