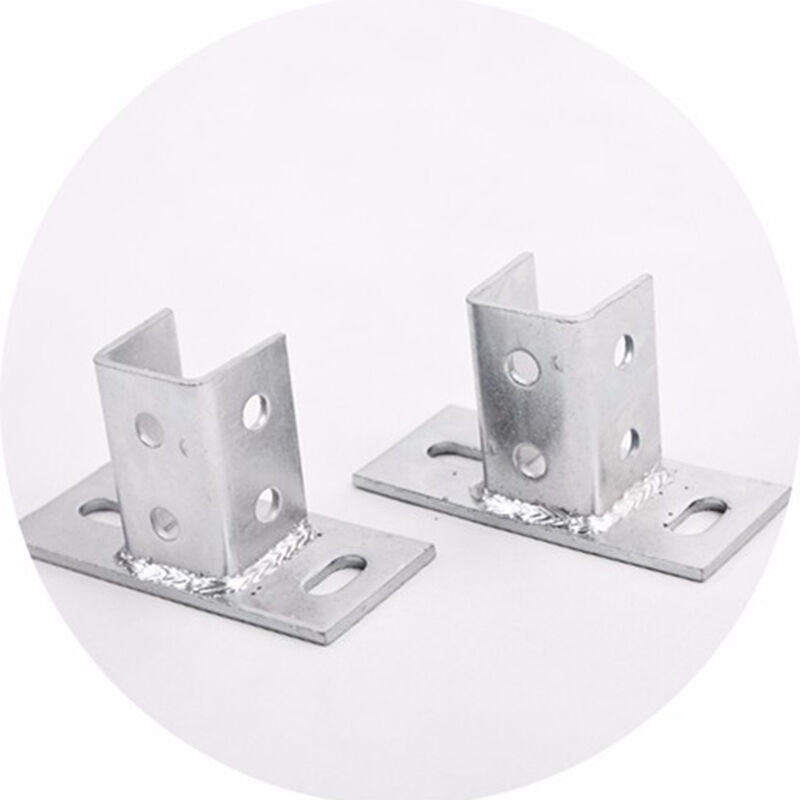

Hot Dip Galvanized Solar Mounting Bracket Base Custom Hole Pattern

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Solar Racking Foundation

Material:

Q235/Steel

Surface Treatment:

Hot Dip Galvanized (HDG)

Thickness:

4-6mm/ Customized

Compatible Channel:

41×21mm Strut Channel

Hole Type:

Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern

Hole Spacing:

50mm / Standard 47.6mm

Working Load:

150kg–800kg (According To Thickness & Structure)

Snow Load:

1.2–2.0kN/㎡

Size:

Standard Size

Tolerance:

±3%

Packing:

Standard Export Packing

Sample:

Free

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

galvanized solar mounting bracket

galvanized solar mount base

hot dip solar mount base

Product Description

Hot Dip Galvanized Solar Bracket Mount Base

Introduction

Our universal adjustable solar panel mounting base offers flexible installation for various photovoltaic system layouts. Made of high-strength galvanized steel, it supports angle and position fine-tuning to adapt to different roof slopes, ground terrains and solar irradiation conditions. The adjustable design allows installers to optimize panel tilt angles for maximum sunlight absorption and power generation efficiency. Suitable for residential, commercial and industrial solar projects, it fits most standard solar panels and mounting rails. The base features multiple mounting holes and adjustable slots for on-site flexibility without additional processing. Hot-dip galvanized treatment ensures long-term anti-corrosion performance in outdoor environments. Modular design enables quick assembly and disassembly, improving construction efficiency. Strictly tested for strength and durability, it meets international PV mounting requirements and provides a flexible, universal solution for diversified solar installations.

Features

This adjustable solar mounting base supports multi-directional position and angle adjustment to adapt to complex installation environments. High-strength galvanized steel ensures stable support and long service life. Adjustable slots and hole positions allow on-site optimization without cutting or drilling, greatly improving construction flexibility. The universal structure matches most solar panel sizes and mounting rail systems, reducing project preparation costs. Its anti-corrosion surface maintains performance in humid, coastal and outdoor conditions. Stable load distribution enhances wind resistance and seismic performance. Easy assembly saves labor and shortens project cycles. With high adaptability and reliable stability, it helps maximize solar energy absorption and provides flexible, efficient support for photovoltaic systems.

Specification

Item	Specification Details
Product Name	Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material	Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment	Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size	100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness	3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel	41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type	Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing	40mm / 50mm / 60mm / Standard 47.6mm
Working Load	150kg–800kg (According to thickness & structure)
Wind Pressure Resistance	Up to 60m/s (Customizable for high wind area)
Snow Load	1.2–2.0kN/㎡
Temperature Range	-40℃ ~ +120℃
Anti-Corrosion Grade	HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type	Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification	ISO9001, CE, SGS, TUV Test Report Available
Application	Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ	100pcs / Accept Small Trial Order
OEM & ODM	Size, Thickness, Logo, Packaging All Customizable
Packing	Carton + Pallet; Custom Packing Acceptable
Service Life	20–30 years

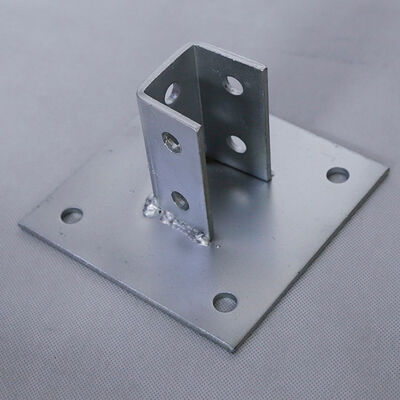

Hot Dip Galvanized Solar Mounting Bracket Base Custom Hole Pattern

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
