| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

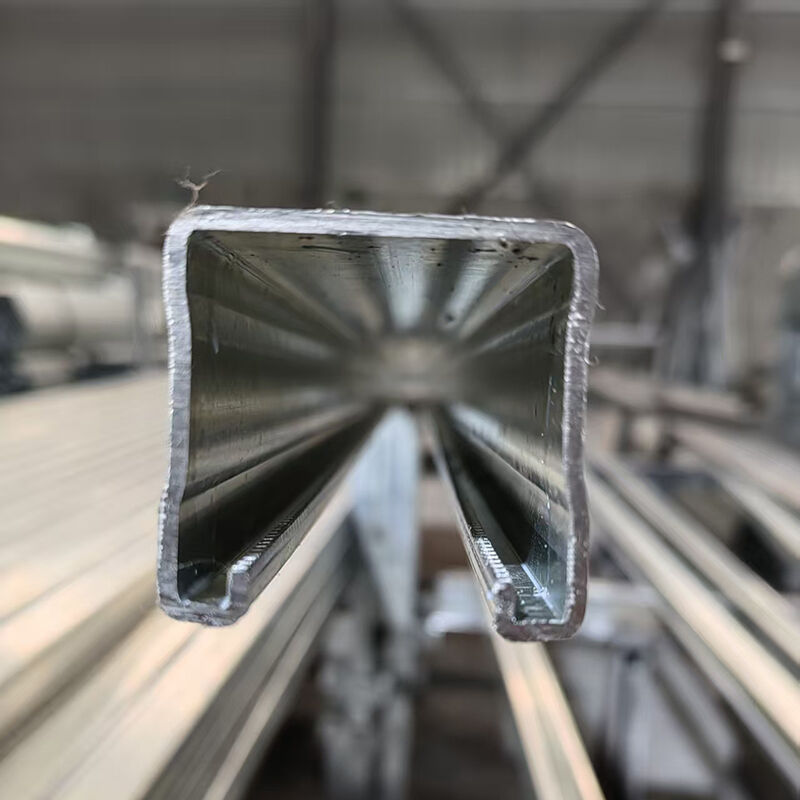

Universal Solar Mount Bracket for Photovoltaic Panel
Introduction
Features
Specification
| Parameter | Specification Details |
|---|---|
| Product Name | Solar Mounting Bracket, PV Panel Support, Solar Racking Structure |
| Material | AL6005-T5 Aluminum Alloy; Q235B Hot Dip Galvanized Steel |
| Surface Treatment | Anodized (Aluminum); Hot Dip Galvanized (Steel); Pre-galvanized |
| Structure Type | Fixed, Adjustable, Roof Mount, Ground Mount, Universal Type |
| Suitable Panel | 150W–700W Monocrystalline & Polycrystalline PV Panels |
| Adjustable Angle | 0°–60° (adjustable type); Fixed (custom angle) |
| Wind Load Resistance | Up to 60m/s (130mph) |
| Snow Load Capacity | 1.2–2.0 kN/㎡ |
| Panel Orientation | Portrait / Landscape |
| Installation Type | Bolt Fastening, Modular Assembly, No Welding |
| Application | Residential Rooftop, Commercial Roof, Solar Farm, Ground PV Station |
| Working Temperature | -40℃ ~ +120℃ |
| Service Life | Aluminum: 25–30 years; Galvanized Steel: 20–25 years |
| Certification | ISO9001, CE, TUV, SGS Test Report Available |
| Standard Length | Customizable according to panel size |
| Thickness | Aluminum: 1.8–3.0mm; Steel: 2.0–4.0mm |
| MOQ | 100 sets / Small trial order acceptable |
| OEM & ODM | Size, hole, color, logo, packaging all customizable |
| Packing | Carton + Pallet; Custom packaging support |
| Supply Ability | Mass production, factory wholesale, fast delivery |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
