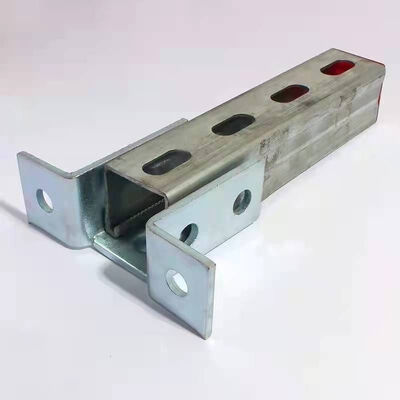

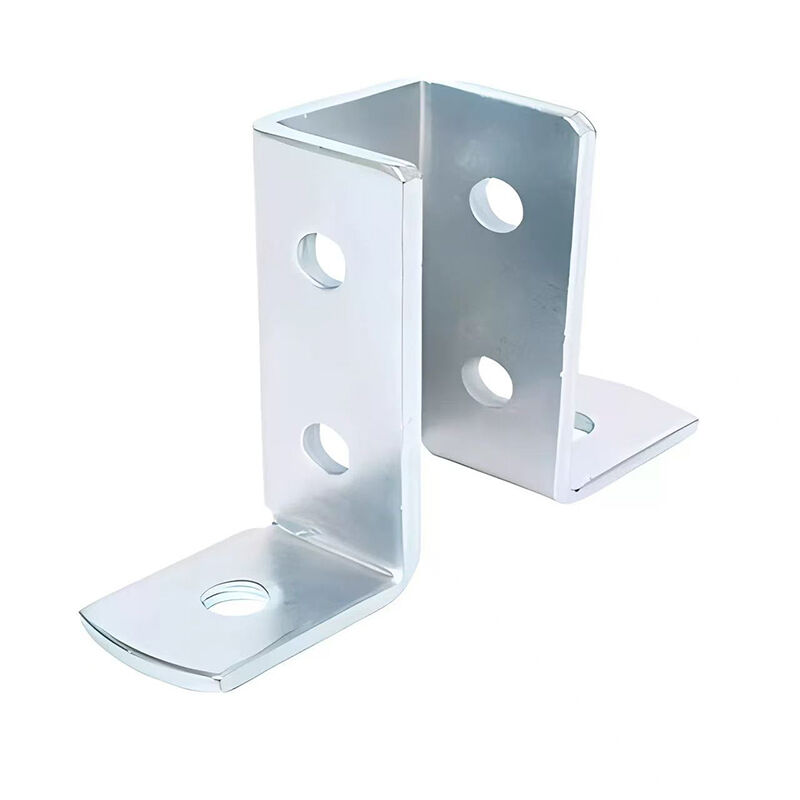

Aluminum Solar Mounting Bracket Base For PV System Installation

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Solar Racking Foundation

Material:

Q235/Steel

Surface Treatment:

Hot Dip Galvanized (HDG)

Thickness:

3-6mm/ Customized

Compatible Channel:

41×41mm Strut Channel

Hole Type:

Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern

Hole Spacing:

40mm / 60mm / Standard 47.6mm

Size:

Standard Size

Tolerance:

±3%

Packing:

Standard Export Packing

Sample:

Free

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

pv solar mount base

pv solar mounting bracket

60mm solar mount base

Product Description

Aluminum Solar Mount Base for PV System Installation

Introduction

This aluminum alloy solar mount base is a lightweight, high-strength foundational component for modern photovoltaic systems. Made of premium AL6005-T5 aluminum with anodized surface treatment, it combines light weight with excellent corrosion resistance, ideal for rooftop solar installations where weight control is critical. The base effectively connects solar mounting rails to roof surfaces, providing stable support while reducing structural load. It is widely used in residential rooftops, commercial buildings and lightweight solar projects. Aluminum material naturally resists rust and oxidation, requiring no regular maintenance and offering a service life of over 25 years. Precision extrusion and CNC processing ensure accurate dimensions and fast assembly.

Features

The aluminum solar mount base features lightweight AL6005-T5 alloy construction for high strength and low weight. Anodized surface treatment provides excellent anti-corrosion, anti-UV and anti-aging performance. Its lightweight design reduces roof load while maintaining reliable structural stability. Precision machining ensures accurate dimensions and smooth installation. The aluminum material is rust-proof and maintenance-free, suitable for long-term outdoor use. Universal compatibility supports most aluminum solar mounting systems for flexible project design. High weather resistance ensures stable performance in extreme temperatures and humid environments.

Specification

Item	Specification Details
Product Name	Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material	Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment	Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size	100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness	3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel	41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type	Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing	40mm / 50mm / 60mm / Standard 47.6mm
Working Load	150kg–800kg (According to thickness & structure)
Wind Pressure Resistance	Up to 60m/s (Customizable for high wind area)
Snow Load	1.2–2.0kN/㎡
Temperature Range	-40℃ ~ +120℃
Anti-Corrosion Grade	HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type	Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification	ISO9001, CE, SGS, TUV Test Report Available
Application	Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ	100pcs / Accept Small Trial Order
OEM & ODM	Size, Thickness, Logo, Packaging All Customizable
Packing	Carton + Pallet; Custom Packing Acceptable
Service Life	20–30 years

Aluminum Solar Mounting Bracket Base For PV System Installation

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
