Durable Solar Mount Base Anti Corrosion Support 50mm / 60mm Hole Spacing

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Solar Racking Foundation

Material:

Q235/Steel

Surface Treatment:

Hot Dip Galvanized (HDG)

Thickness:

3-6mm/ Customized

Compatible Channel:

41×41mm Strut Channel

Hole Type:

Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern

Hole Spacing:

50mm / 60mm

Snow Load:

1.2–2.0kN/㎡

Size:

Standard Size

Tolerance:

±3%

Packing:

Standard Export Packing

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

durable solar mount base

solar mount base anti corrosion

durable solar mounting bracket

Product Description

Durable Solar Mount Base Anti-Corrosion Support

Introduction

Our durable anti-corrosion solar mount base is engineered for long service life in harsh environmental conditions. Constructed from high-grade steel with enhanced anti-corrosion treatment, it resists salt spray, humidity, acid rain and industrial pollution, making it ideal for coastal, chemical and open-air solar projects. The base serves as a stable support foundation for solar panels, effectively protecting mounting structures from rust and structural degradation. It is compatible with most standard solar mounting systems and suitable for ground, rooftop and industrial photovoltaic installations. Precision manufacturing ensures consistent dimensions and easy installation. Each product undergoes strict anti-corrosion and load-bearing testing to meet international PV standards. With exceptional durability and low maintenance needs, it significantly extends system service life and reduces replacement costs, providing reliable long-term support for solar energy systems.

Features

This anti-corrosion solar mount base adopts advanced surface treatment for excellent rust and weather resistance. High-strength steel ensures stable load-bearing performance and deformation resistance. It effectively withstands coastal salt fog, high humidity and chemical corrosion, maintaining structural integrity for decades. Precision processing ensures accurate fitting and fast installation. Stable load distribution improves wind and snow load capacity of PV systems. The durable structure reduces maintenance frequency and lowers operating costs. Universal design fits most solar mounting rails and brackets for high project compatibility. Reliable performance in harsh environments ensures stable long-term operation. It provides dependable anti-corrosion foundational support for solar photovoltaic systems in demanding environments.

Specification

Item	Specification Details
Product Name	Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material	Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment	Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size	100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness	3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel	41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type	Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing	40mm / 50mm / 60mm / Standard 47.6mm
Working Load	150kg–800kg (According to thickness & structure)
Wind Pressure Resistance	Up to 60m/s (Customizable for high wind area)
Snow Load	1.2–2.0kN/㎡
Temperature Range	-40℃ ~ +120℃
Anti-Corrosion Grade	HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type	Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification	ISO9001, CE, SGS, TUV Test Report Available
Application	Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ	100pcs / Accept Small Trial Order
OEM & ODM	Size, Thickness, Logo, Packaging All Customizable
Packing	Carton + Pallet; Custom Packing Acceptable
Service Life	20–30 years

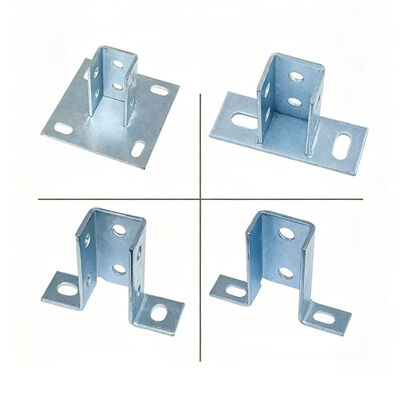

Durable Solar Mount Base Anti Corrosion Support 50mm / 60mm Hole Spacing

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
