50mm / 60mm Hole Solar Panel Mount Base Customizable Standard Size

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Solar Mounting Bracket Base

Material:

Q235/Steel

Surface Treatment:

Hot Dip Galvanized (HDG)

Thickness:

3-6mm/ Customized

Compatible Channel:

41×41mm Strut Channel

Hole Spacing:

50mm / 60mm

Snow Load:

1.2–2.0kN/㎡

Size:

Standard Size

Tolerance:

±3%

Packing:

Standard Export Packing

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

50mm solar mount base

50mm solar mounting bracket

60mm solar mount base

Product Description

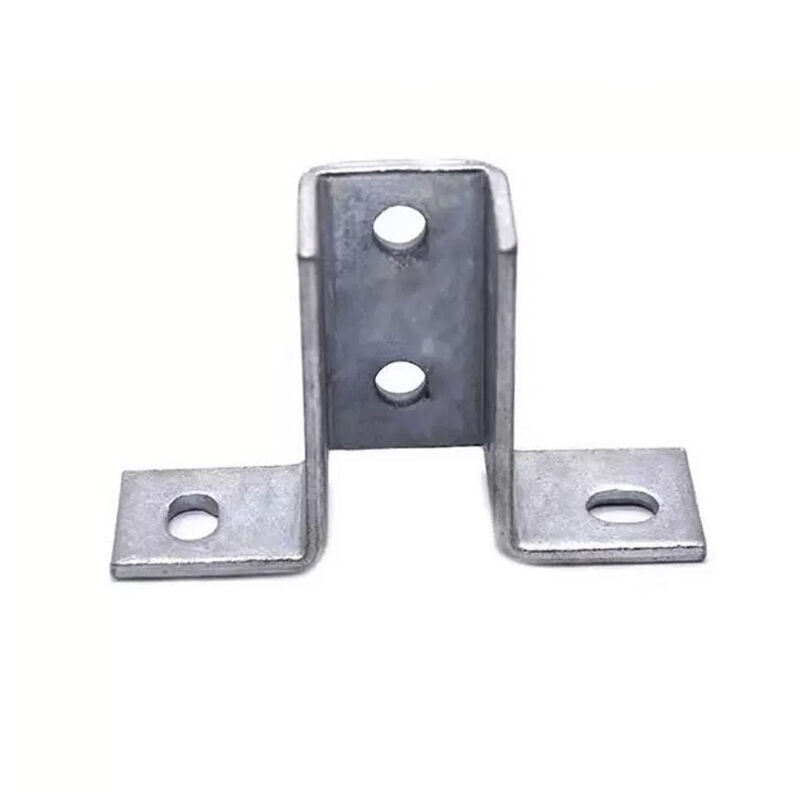

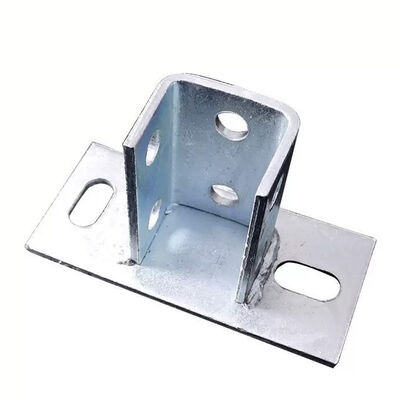

Factory Supply Solar Panel Mount Base Customizable

Introduction

We are a direct factory supplying customizable solar panel mount bases tailored to special project requirements. We support customization of size, thickness, hole pattern, shape and surface treatment to meet non-standard installation needs. Materials include galvanized steel, stainless steel and aluminum alloy for different load and anti-corrosion demands. Custom bases are widely used in special-shaped PV systems, large-scale solar farms, customized rooftop installations and industrial photovoltaic projects. Our advanced stamping and CNC equipment ensures high processing accuracy and consistent quality. We accept small-batch trial orders and large-volume mass production with fast lead times. Each customized product undergoes strict quality inspection to meet international standards. With flexible customization and reliable factory supply, we provide personalized foundational solutions for diversified solar mounting projects.

Features

This customizable solar mount base supports full-size customization including dimensions, hole spacing, thickness and shape. Multiple material and surface finish options adapt to different load, environment and anti-corrosion requirements. Precision processing ensures smooth edges, accurate holes and stable fitting. Custom designs solve non-standard installation challenges and improve project adaptability. Flexible order quantities support both prototype development and mass production. Factory direct supply ensures competitive pricing and stable quality. High compatibility with various solar mounting systems enhances project flexibility. Strict quality control guarantees reliable performance and long service life. With strong customization capability and efficient production, it provides personalized, reliable foundational support for special solar photovoltaic projects.

Specification

Item	Specification Details
Product Name	Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material	Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment	Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size	100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness	3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel	41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type	Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing	40mm / 50mm / 60mm / Standard 47.6mm
Working Load	150kg–800kg (According to thickness & structure)
Wind Pressure Resistance	Up to 60m/s (Customizable for high wind area)
Snow Load	1.2–2.0kN/㎡
Temperature Range	-40℃ ~ +120℃
Anti-Corrosion Grade	HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type	Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification	ISO9001, CE, SGS, TUV Test Report Available
Application	Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ	100pcs / Accept Small Trial Order
OEM & ODM	Size, Thickness, Logo, Packaging All Customizable
Packing	Carton + Pallet; Custom Packing Acceptable
Service Life	20–30 years

50mm / 60mm Hole Solar Panel Mount Base Customizable Standard Size

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
