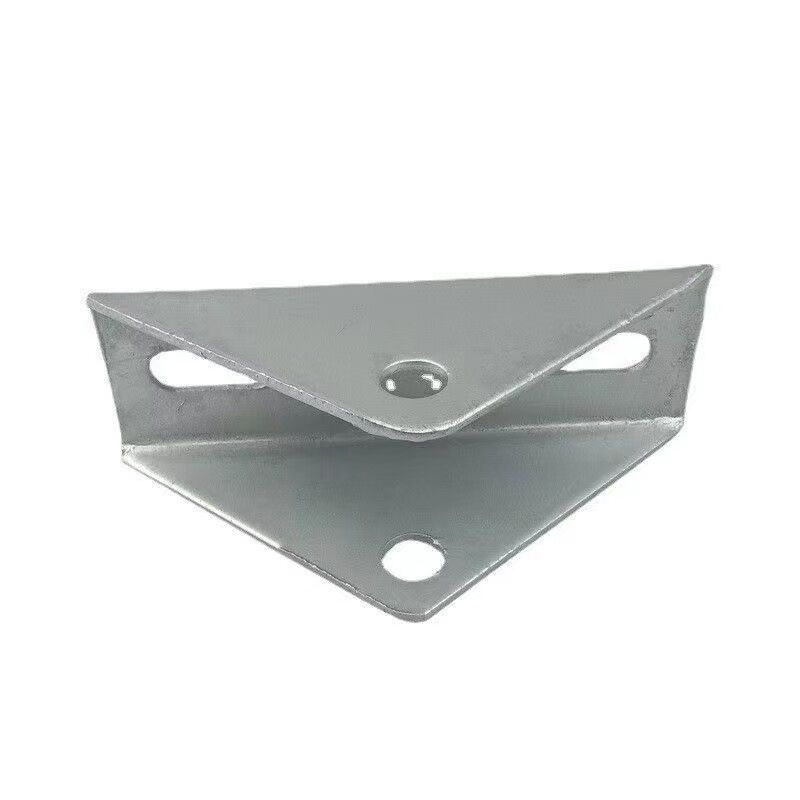

High Strength Aluminum Alloy Triangle Solar Panel Mounting Bracket System

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Triangle Solar Mounting Bracket

Material:

Q195/Q235/Steel

Compatible Profile:

41mm*41mm Unistrut Strut Channel System

Size:

Standard Size

Tolerance:

±3%

Sample:

Free

Delivery Date:

15 Days

Packing:

Standard Export Packing

Length:

Standard Size/According To TheCustomer's Requirements

MOQ:

100 Sets / Small Trial Order Acceptable

Delivery Time:

15-20days From The Date Of Payment

Process Service:

Cutting ,Punching ,Welding , Bending

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

triangle solar panel mounting bracket

triangle solar panel roof bracket

high strength solar panel roof bracket

Product Description

High Strength Aluminum Alloy Triangle Solar Panel Mounting Bracket System

Introduction

The Triangle Solar Mounting Bracket is specially designed to meet the installation needs of various solar photovoltaic systems, providing stable and reliable support for solar panels in residential, commercial and industrial scenarios. Featuring a scientific triangular mechanical structure, it distributes pressure evenly, significantly improving the overall stability and load-bearing capacity of the mounting system, and ensuring safe use even in extreme weather. Crafted from high-grade aluminum alloy, the bracket is lightweight yet sturdy, not easy to deform, and has excellent anti-corrosion and anti-rust properties, ensuring a long service life. The modular and pre-assembled design makes on-site construction extremely convenient, with no complicated operation required, which effectively saves installation time and project costs. It can be flexibly installed on concrete roofs, metal roofs and open grounds, with customizable tilt angles to adapt to different latitudes and lighting conditions, maximizing the power generation efficiency of solar panels. This product integrates high stability, easy installation and strong adaptability, providing a high-quality and economical mounting solution for global photovoltaic projects.

Features

Our Triangle Solar Mounting Bracket delivers outstanding performance in multiple aspects. The triangular structure enhances structural stability and load-bearing capacity, effectively resisting wind and snow loads. High-quality aluminum alloy material ensures light weight, high strength, corrosion resistance and long service life, suitable for long-term outdoor use. The pre-assembled modular design realizes fast and hassle-free installation, lowering construction difficulty and labor costs. It offers flexible angle configuration to optimize solar exposure and boost energy output. Featuring strong compatibility, it matches various solar panel types and can be widely used in rooftop and ground photovoltaic projects. With low maintenance requirements and reliable operation, it effectively improves the economy and stability of the entire photovoltaic system.

Specification

Item	Parameter Details
Product Name	Triangle Solar Mounting Bracket
Material	AL6005-T5 Anodized Aluminum Alloy
Fasteners	Stainless Steel A2 / A4 (SS304 / SS316)
Structure	Triangle Fixed Tilt Structure
Suitable Panel Type	Framed Monocrystalline & Polycrystalline Solar Panels
Installation Scenario	Flat Roof, Ground, Open Area, Commercial & Residential Roof
Wind Load Resistance	Up to 46–60 m/s (customizable)
Snow Load Capacity	1.2–2.0 kN/㎡ (adjustable)
Tilt Angle	Fixed 10°/15°/20°/25°/30°/35°/40°/45° (customizable)
Color	Natural Silver (Anodized)
Surface Treatment	Anodizing, Anti-corrosion, Anti-UV
Service Life	25+ Years
Assembly Type	Pre-assembled, Modular Design
Installation Method	Bolt-fixed, No Welding & No Cutting
Packing	Carton + Pallet
MOQ	1 Set / 10 Sets (negotiable)
Application	Solar PV System, Home Solar, Commercial Solar Station

High Strength Aluminum Alloy Triangle Solar Panel Mounting Bracket System

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
