Adjustable Triangle Solar Mounting Bracket For Flat Roof PV Panel Installation

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Triangle Solar Mounting Bracket

Material:

Q195/Q235/Steel

Compatible Profile:

41mm*41mm Unistrut Strut Channel System

Size:

Standard Size

Tolerance:

±3%

Sample:

Free

Delivery Date:

15 Days

Packing:

Standard Export Packing

Length:

Standard Size/According To TheCustomer's Requirements

MOQ:

100 Sets / Small Trial Order Acceptable

Delivery Time:

15-20days From The Date Of Payment

Process Service:

Cutting ,Punching ,Welding , Bending

Thickness:

3-6mm/ Customized

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

triangle solar mounting bracket

adjustable solar mount base

adjustable solar mounting bracket

Product Description

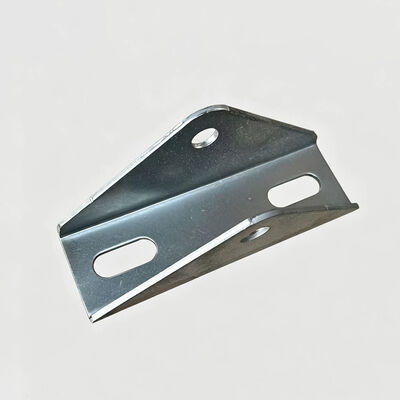

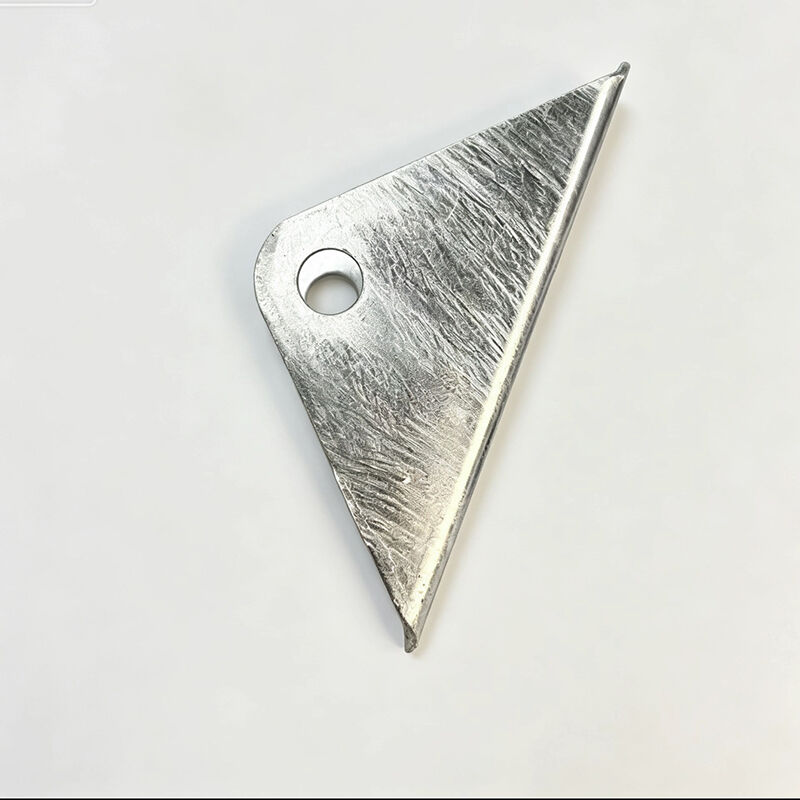

Adjustable Triangle Solar Mounting Bracket for Flat Roof PV Panel Installation

Introduction

This Triangle Solar Mounting Bracket is a high-performance support accessory for solar panel installation, dedicated to providing safe, stable and efficient fixing solutions for photovoltaic systems. The classic triangular structure design ensures excellent mechanical stability, effectively dispersing external forces and enhancing the system's ability to resist wind, snow and earthquake, ensuring the safety of solar panels in complex outdoor environments. Manufactured from anodized aluminum alloy and equipped with stainless steel hardware, it has superior anti-corrosion, anti-ultraviolet and anti-rust performance, maintaining good performance for decades without frequent replacement. The product adopts a fully pre-assembled structure, which is easy to carry and install, and can complete the installation quickly with simple tools, greatly reducing construction time and labor investment. It is suitable for flat roofs, courtyards, industrial parks and other scenarios, supporting fixed tilt angle design to ensure optimal solar absorption. With reliable quality, easy installation and wide applicability, this bracket is deeply favored by global photovoltaic installers and project contractors.

Features

The Triangle Solar Mounting Bracket has comprehensive functional advantages. Its triangular structure provides exceptional stability and strong wind and snow resistance, protecting solar panels reliably. High-grade anodized aluminum alloy material ensures durability, corrosion resistance and long service life, adapting to diverse climatic conditions. The pre-assembled design enables fast and simple installation, improving construction efficiency and reducing project costs. It provides optimized tilt angle to enhance solar energy absorption and increase power generation efficiency. The product is highly versatile, compatible with most solar panels and suitable for rooftop, ground and other installation scenarios. With low maintenance cost and stable performance, it effectively improves the reliability and economy of photovoltaic systems, making it an ideal choice for various solar mounting projects.

Specification

Item	Parameter Details
Product Name	Triangle Solar Mounting Bracket
Material	AL6005-T5 Anodized Aluminum Alloy
Fasteners	Stainless Steel A2 / A4 (SS304 / SS316)
Structure	Triangle Fixed Tilt Structure
Suitable Panel Type	Framed Monocrystalline & Polycrystalline Solar Panels
Installation Scenario	Flat Roof, Ground, Open Area, Commercial & Residential Roof
Wind Load Resistance	Up to 46–60 m/s (customizable)
Snow Load Capacity	1.2–2.0 kN/㎡ (adjustable)
Tilt Angle	Fixed 10°/15°/20°/25°/30°/35°/40°/45° (customizable)
Color	Natural Silver (Anodized)
Surface Treatment	Anodizing, Anti-corrosion, Anti-UV
Service Life	25+ Years
Assembly Type	Pre-assembled, Modular Design
Installation Method	Bolt-fixed, No Welding & No Cutting
Packing	Carton + Pallet
MOQ	1 Set / 10 Sets (negotiable)
Application	Solar PV System, Home Solar, Commercial Solar Station

Adjustable Triangle Solar Mounting Bracket For Flat Roof PV Panel Installation

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
