| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

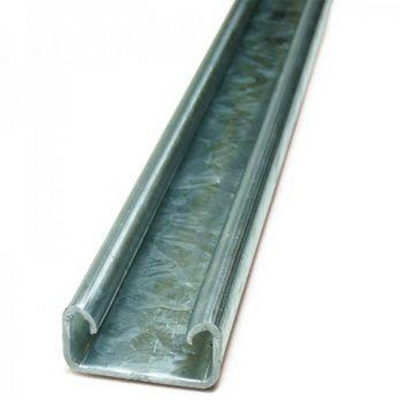

Q235B HDG Unistrut Channel Hot Dip Galvanized C Channel
Introduction
Features
This HDG galvanized C channel features excellent anti-corrosion performance through strict hot-dip galvanizing technology, greatly extending service life in indoor and outdoor environments. The high-strength steel substrate ensures outstanding load-bearing capacity and structural stability, resisting bending and deformation under long-term static and dynamic loads. Standard slotted structure allows free position adjustment and fast assembly, greatly improving construction efficiency and reducing labor costs. The product adopts fully standardized production with accurate size tolerance and strong compatibility with all conventional unistrut accessories. It has excellent weather resistance, adapting to humid, dusty and ordinary atmospheric environments. Lightweight but high-rigidity design simplifies transportation, handling and installation. No welding operation is required on site, which protects the anti-corrosion layer completely and avoids secondary rusting. It is a universal, durable and high-cost-performance structural support material for diverse construction applications.
Specification
| Parameter Item | Detailed Specification |
| Product Name | HDG Unistrut Channel |
| Raw Material | High-quality Q235B / Q355B carbon steel, prime raw steel coil |
| Surface Treatment | Full hot-dip galvanized (HDG), no cold galvanized / spray painting; integral galvanizing for inner and outer walls |
| Zinc Coating Thickness | 60μm - 120μm (customizable); uniform and adhesive zinc layer, no peeling, no missing plating |
| Standard Sizes (Main) | 41×21mm, 41×41mm, 41×62mm, 41×82mm (full size series available) |
| Wall Thickness | 1.5mm, 2.0mm, 2.5mm (light duty / medium duty / heavy duty optional) |
| Standard Length | 3m / 6m; customized cutting length available according to project requirements |
| Structural Feature | Standard C-shaped groove with inward folded lips, long slotted hole design for flexible adjustment |
| Processing Technology | Precision cold-rolled forming, one-piece molding, no secondary welding, smooth surface without burrs |
| Mechanical Performance | High structural rigidity, strong load-bearing capacity, anti-bending, anti-deformation, stable long-term load performance |
| Service Life | 20+ years for outdoor/coastal/humid industrial environments |
| Compatible Accessories | Spring nuts, beam clamps, pipe clamps, seismic brackets, connection fittings (full standard accessories matching) |
| Installation Feature | Modular assembly, no on-site welding/cutting, free position adjustment, high construction efficiency |
| Application Scenarios | Solar mounting system, seismic bracing, HVAC & pipeline support, electrical engineering, building structural support, municipal engineering |
| Quality Standard | Compliant with international construction and industrial support standards, 100% factory inspection before delivery |
| Customization Service | Custom size, special galvanizing thickness, non-standard punching and cutting available |
| Supply Capacity | Factory direct supply, sufficient stock, support bulk wholesale and engineering order customization |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
