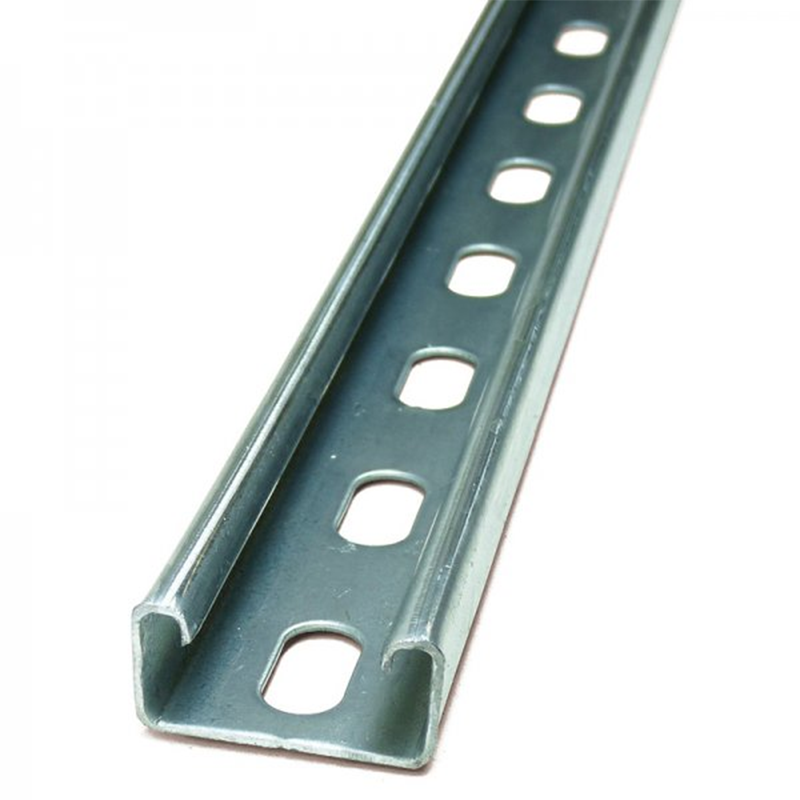

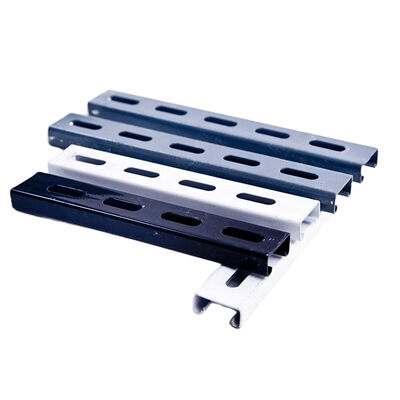

HDG Slotted Strut Channel for Solar Mounting System
Introduction
HDG slotted strut channel is specially designed for solar photovoltaic mounting systems. Made of high‑quality steel with hot dip galvanizing, it delivers excellent weather, UV and corrosion resistance for outdoor use. The standardized slotted structure supports flexible angle and position adjustment of solar panels. It is widely applied in rooftop and ground solar power stations, ensuring stable and safe support for long‑term operation.
Features
It provides outstanding outdoor anti‑corrosion and anti‑aging performance. High strength ensures strong wind resistance and load capacity. Slotted holes enable easy installation and precise adjustment. No welding is required, reducing construction time. Durable and low‑maintenance, it is an ideal support solution for solar mounting projects.
Specification
| Parameter Item | Specification |
|---|---|
| Product Name | Slotted Strut Channel / Galvanized C Channel |
| Material | Q235B / Q355B Carbon Steel |
| Surface Treatment | Hot Dipped Galvanized (HDG) |
| Zinc Coating Thickness | 60μm – 120μm |
| Standard Sizes | 41×21mm, 41×41mm, 41×62mm, 41×82mm |
| Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm (Heavy Duty) |
| Standard Length | 3m, 6m, customizable length available |
| Structure | C‑shaped with inward lips, continuous slotted holes |
| Processing Technology | Cold rolled forming, integrated punching |
| Mechanical Property | High strength, good bending & compression resistance |
| Application | Solar mounting, seismic bracing, HVAC, pipeline, cable tray support |
| Features | Adjustable, easy installation, anti‑corrosion, long service life |
| MOQ | Small orders & bulk orders accepted |
| Supply Ability | Factory direct, large stock, fast delivery |
| Customization | Size, length, hole pattern, special punching available |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
