| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

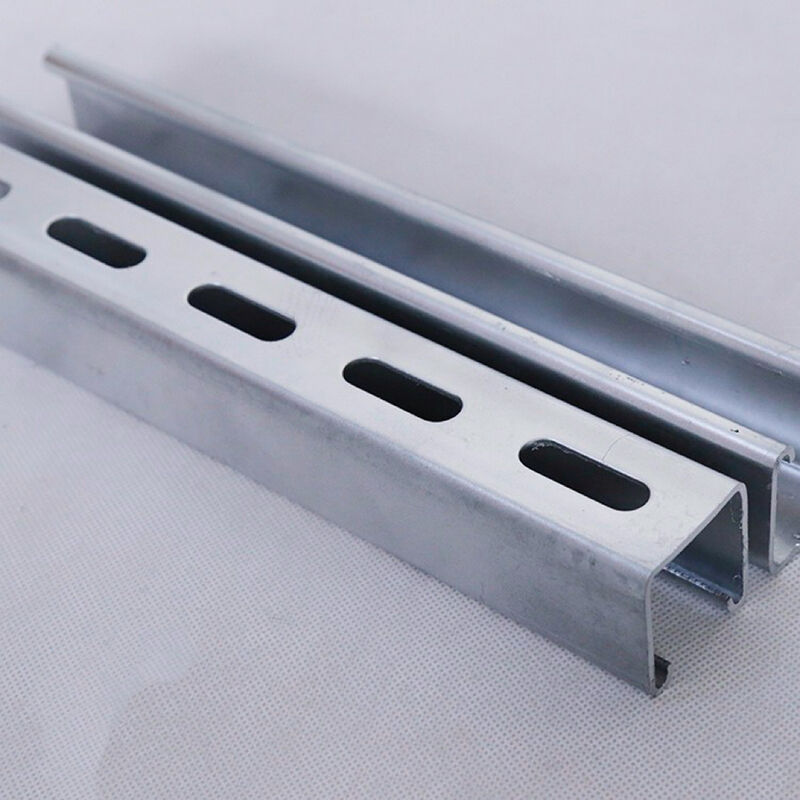

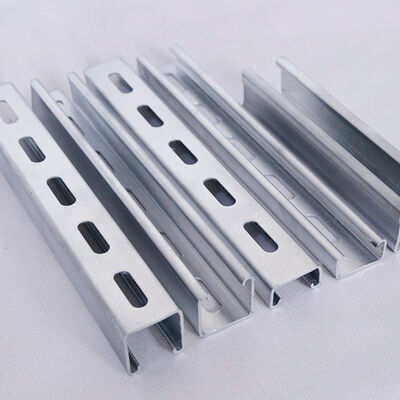

Slotted Strut Channel with Long Service Life for Construction
Introduction
Slotted strut channel with hot dip galvanized finish is engineered for long service life in construction. High‑strength carbon steel material provides excellent bending and compression resistance. The full‑coverage zinc layer effectively resists moisture, dust and corrosion. It is widely used in building structures, ceiling suspension, equipment fixing and infrastructure support.
Features
Superior anti‑corrosion performance ensures long‑term durability. High structural strength prevents deformation under long‑term load. Slotted design enables fast and adjustable installation. Low maintenance cost reduces overall project expense. Suitable for various construction environments.
Specification
| Parameter Item | Specification |
|---|---|
| Product Name | Slotted Strut Channel / Galvanized C Channel |
| Material | Q235B / Q355B Carbon Steel |
| Surface Treatment | Hot Dipped Galvanized (HDG) |
| Zinc Coating Thickness | 60μm – 120μm |
| Standard Sizes | 41×21mm, 41×41mm, 41×62mm, 41×82mm |
| Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm (Heavy Duty) |
| Standard Length | 3m, 6m, customizable length available |
| Structure | C‑shaped with inward lips, continuous slotted holes |
| Processing Technology | Cold rolled forming, integrated punching |
| Mechanical Property | High strength, good bending & compression resistance |
| Application | Solar mounting, seismic bracing, HVAC, pipeline, cable tray support |
| Features | Adjustable, easy installation, anti‑corrosion, long service life |
| MOQ | Small orders & bulk orders accepted |
| Supply Ability | Factory direct, large stock, fast delivery |
| Customization | Size, length, hole pattern, special punching available |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
