| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

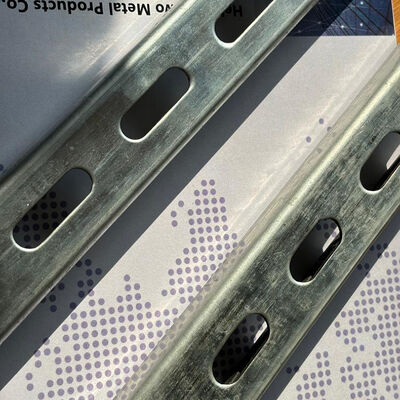

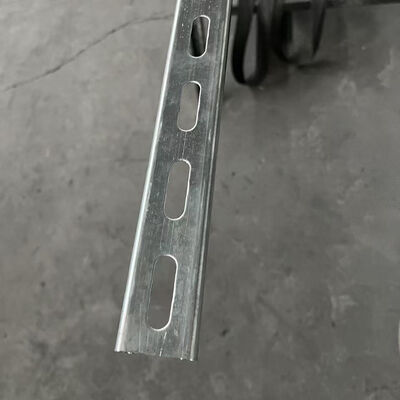

41×41 Slotted Strut Channel for Seismic Bracing Support
Introduction
41×41 slotted strut channel is widely used in seismic bracing and pipeline support systems. Manufactured with high‑toughness carbon steel and HDG treatment, it offers excellent shock resistance and structural stability. The uniform slotted design allows flexible combination with seismic accessories to form a complete support system. It meets international seismic standards and is widely used in commercial buildings, factories and infrastructure projects.
Features
This channel provides reliable seismic resistance and vibration absorption. Hot dip galvanized coating ensures long‑term anti‑corrosion performance. High rigidity reduces displacement and deformation risks. Slotted structure enables fast assembly and accurate positioning. It effectively improves the safety of pipelines, cables and ducts in buildings.
Specification
| Parameter Item | Specification |
|---|---|
| Product Name | Slotted Strut Channel / Galvanized C Channel |
| Material | Q235B / Q355B Carbon Steel |
| Surface Treatment | Hot Dipped Galvanized (HDG) |
| Zinc Coating Thickness | 60μm – 120μm |
| Standard Sizes | 41×21mm, 41×41mm, 41×62mm, 41×82mm |
| Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm (Heavy Duty) |
| Standard Length | 3m, 6m, customizable length available |
| Structure | C‑shaped with inward lips, continuous slotted holes |
| Processing Technology | Cold rolled forming, integrated punching |
| Mechanical Property | High strength, good bending & compression resistance |
| Application | Solar mounting, seismic bracing, HVAC, pipeline, cable tray support |
| Features | Adjustable, easy installation, anti‑corrosion, long service life |
| MOQ | Small orders & bulk orders accepted |
| Supply Ability | Factory direct, large stock, fast delivery |
| Customization | Size, length, hole pattern, special punching available |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
