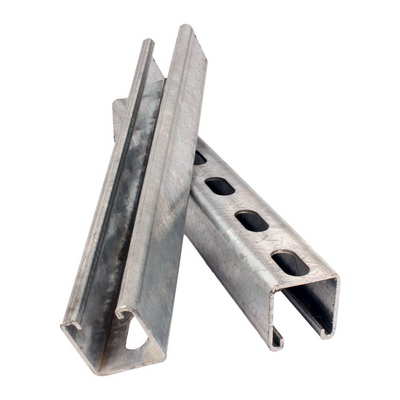

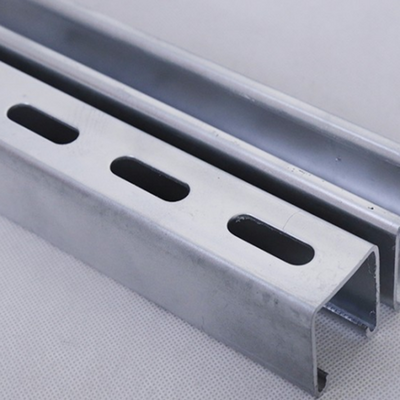

Slotted Strut Channel for Electrical Cable Tray & Pipeline Support
Introduction
Slotted strut channel is widely used for electrical cable tray, conduit and pipeline support. With a smooth and burr‑free surface, it protects cables and pipes from damage. Hot dip galvanized treatment ensures stable performance in humid and industrial environments. The slotted structure allows neat layout and flexible positioning, improving the safety and appearance of electrical and piping systems.
Features
It offers strong load capacity for cable trays and pipelines. Anti‑corrosion coating extends service life. Slotted holes enable easy height and position adjustment. Easy to install and maintain. Suitable for indoor and outdoor electrical and plumbing projects.
Specification
| Parameter Item | Specification |
|---|---|
| Product Name | Slotted Strut Channel / Galvanized C Channel |
| Material | Q235B / Q355B Carbon Steel |
| Surface Treatment | Hot Dipped Galvanized (HDG) |
| Zinc Coating Thickness | 60μm – 120μm |
| Standard Sizes | 41×21mm, 41×41mm, 41×62mm, 41×82mm |
| Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm (Heavy Duty) |
| Standard Length | 3m, 6m, customizable length available |
| Structure | C‑shaped with inward lips, continuous slotted holes |
| Processing Technology | Cold rolled forming, integrated punching |
| Mechanical Property | High strength, good bending & compression resistance |
| Application | Solar mounting, seismic bracing, HVAC, pipeline, cable tray support |
| Features | Adjustable, easy installation, anti‑corrosion, long service life |
| MOQ | Small orders & bulk orders accepted |
| Supply Ability | Factory direct, large stock, fast delivery |
| Customization | Size, length, hole pattern, special punching available |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
