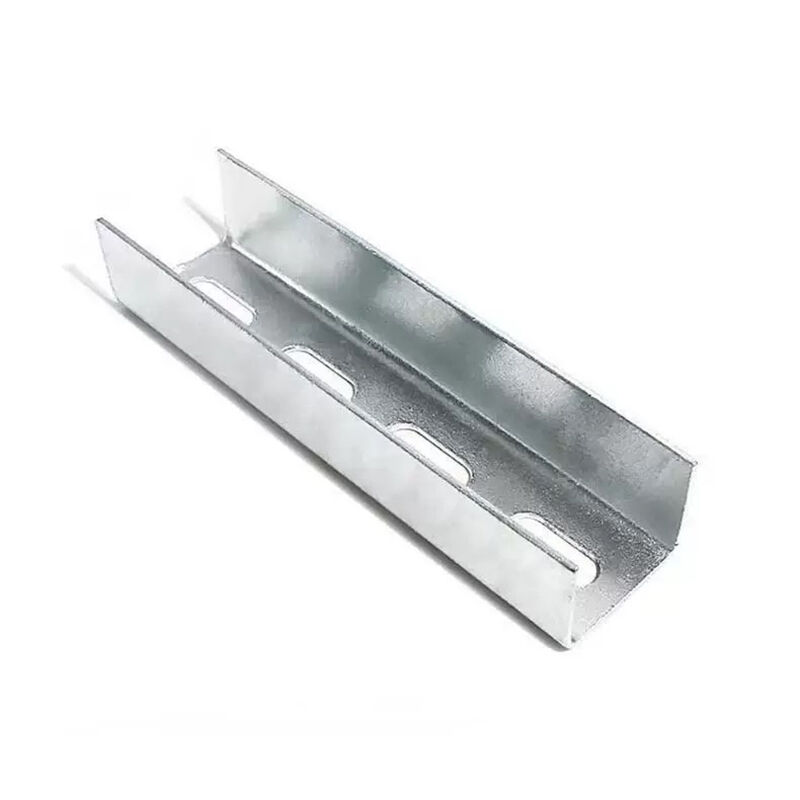

0.8-3mm Solar Mounting Bracket Joint Connector Galvanized Steel

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Solar Mounting Bracket Joint

Material:

Q195/Q235/Steel

Surface Treatment:

Hot Dip Galvanized

Type:

Fixed Joint

Compatible Profile:

Standard Solar Mount Rails, 41×21 / 41×41 Strut Channel

Thickness:

0.8-3mm/Customized

Load Capacity:

200kg – 600kg

Application:

Solar Racking, PV Panel Mount, Ground & Roof Solar System

Size:

Standard Size/ Customized

Tolerance:

±3%

Process Service:

Cutting ,Punching

Packaging Details:

Pack according to the product size/Customized

Highlight:

3mm solar mounting bracket

3mm solar mount base

galvanized solar mount base

Product Description

Solar Mounting Bracket Joint Connector Galvanized Steel

Introduction

Our galvanized steel solar mounting bracket joint is a key connecting component designed for stable and reliable photovoltaic system assembly. Made of high-strength Q235B carbon steel with hot-dip galvanized surface treatment, it provides excellent structural strength and long-term anti-corrosion performance. This joint firmly connects solar mounting rails, brackets and support legs, forming an integrated and stable racking system. It is widely used in residential rooftop solar installations, commercial PV systems and ground-mounted solar power stations. Compatible with standard aluminum and steel mounting profiles, it features precise punching and standard hole spacing for quick bolt-on installation without on-site welding or modification. Each joint undergoes strict load-bearing and anti-corrosion testing to meet international solar engineering standards. With stable structure and durable performance, it ensures long-term safe operation of photovoltaic systems under outdoor weather conditions.

Features

This solar bracket joint adopts heavy-duty galvanized steel structure for high rigidity and deformation resistance. The thick hot-dip galvanized coating effectively resists rust, UV radiation and weather erosion, extending service life in harsh outdoor environments. Standardized hole positions ensure accurate alignment with mounting components, enabling fast and easy installation to reduce labor time. Its reinforced connecting design improves overall system stability, enhancing wind resistance and snow load capacity. The universal structure fits most mainstream solar mounting profiles, improving project compatibility and reducing accessory types. With high durability and low maintenance requirements, it maintains stable performance under long-term outdoor exposure. It provides reliable connection support for solar racking systems, ensuring safe and efficient operation of photovoltaic installations.

Specification

Parameter	Details
Product Name	Solar Mounting Bracket Joint, PV Racking Connector, Solar Structure Joint
Material	Q235B Steel, AL6005-T5 Aluminum Alloy
Surface Treatment	Hot Dip Galvanized, Pre-Galvanized, Anodized
Type	Fixed Joint, Adjustable Joint, Corner Joint
Compatible Profile	Standard Solar Mount Rails, 41×21 / 41×41 Strut Channel
Hole Specification	Round Hole φ11 / φ13.5; Slotted Adjustment Hole
Thickness	2.5mm, 3.0mm, 4.0mm, 5.0mm
Load Capacity	200kg – 600kg
Wind Load	Up to 60m/s
Snow Load	1.2 – 2.0 kN/㎡
Working Temperature	-40℃ ~ +120℃
Adjustable Angle	Fixed / 0°–90° adjustable
Installation	Bolt Fastening, Tool-Free Assembly
Application	Solar Racking, PV Panel Mount, Ground & Roof Solar System
Service Life	20–30 years
Certification	ISO9001, CE, TUV, SGS Test Report
MOQ	100pcs, Small Trial Order Acceptable
OEM / ODM	Size, Hole, Thickness, Logo Customizable
Packing	Carton + Pallet

0.8-3mm Solar Mounting Bracket Joint Connector Galvanized Steel

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
