| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T,T/T |
| Supply Ability: | 50 to 80+ tons/day |
Durable HDG Unistrut Channel for Seismic Bracing & PV Support
Introduction
The seismic bracing system is assembled with strut channels, seismic diagonal braces, universal swivel hinges, beam clamps, pipe clamps and seismic anchor bolts.
Made of Q235B low‑carbon steel, it is available with two surface finishes: pre‑galvanized and hot‑dip galvanized.
Pre‑galvanized finish suits indoor dry working conditions; hot‑dip galvanizing delivers excellent rust & corrosion resistance for outdoor, humid‑rainy and coastal salt‑fog environments.
It is applied for seismic reinforcement of pipes, ducts and cable trays, compatible with various building MEP projects. Customization is supported.
Features
This durable HDG unistrut channel is specially developed for HVAC and pipeline support engineering.
Hot dip galvanized C-channel is a cold-formed section treated by hot-dip galvanizing process. It features superior corrosion resistance, excellent rust protection and longer service life. It is especially recommended for coastal salt-fog areas and outdoor humid & rainy environments.
Specification
| Parameter Item | Detailed Specification |
| Product Name |

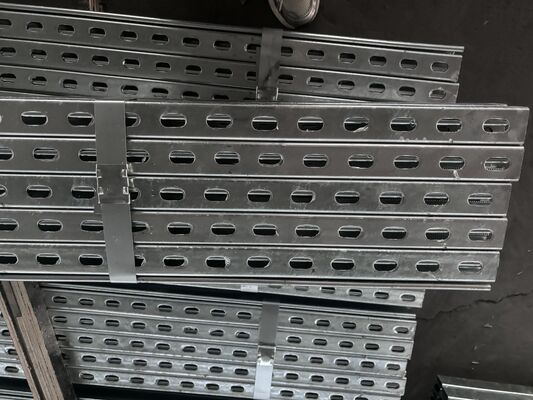

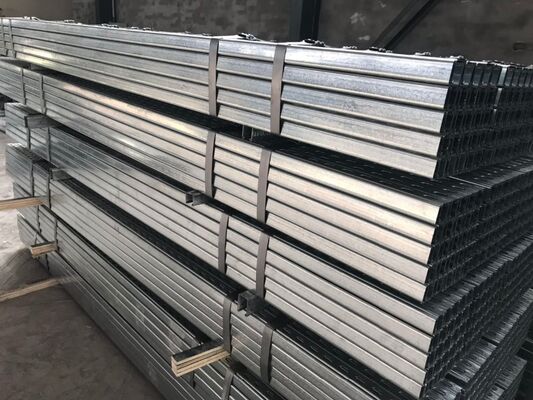

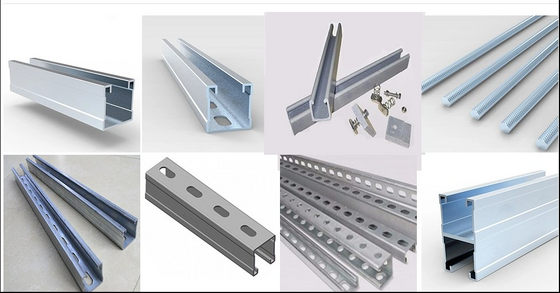

Hot Dip Galvanized Slotted Strut Channel
|
| Raw material | Carbon steel |
| Grade | Q195 ,Q235 |
| Surface | Hot dip galvanized |
| Zinc Coating Thickness | 40-85um/m2 |
| Standard Sizes (Main) | 41×21mm, 41×41mm, 41×62mm, 41×82mm (full size series available) |
| Hole size | 11x35mm,12x25mm,12x30mm,14x28mm,14.3x28.6mm |
| Thickness | 2.0-2.5mm |
| Standard Length | 3m / 6m; customized cutting length available according to project requirements |
| Type | Slotted / Solid |
| Processing Technology | Precision cold-rolled forming, one-piece molding, no secondary welding, smooth surface without burrs |
| Mechanical Performance | High structural rigidity, strong load-bearing capacity, anti-bending, anti-deformation, stable long-term load performance |
| Service Life | 20+ years for outdoor/coastal/humid industrial environments |
| Compatible Accessories | Spring nuts, beam clamps, pipe clamps, seismic brackets, connection fittings (full standard accessories matching) |
| Installation Feature | Modular assembly, no on-site welding/cutting, free position adjustment, high construction efficiency |
| Application Scenarios | Solar mounting system, seismic bracing, HVAC & pipeline support, electrical engineering, building structural support, municipal engineering |
| Quality Standard | Compliant with international construction and industrial support standards, 100% factory inspection before delivery |
| Customization Service | Custom size, special galvanizing thickness, non-standard punching and cutting available |
| Supply Capacity | Factory direct supply, sufficient stock, support bulk wholesale and engineering order customization |
| Packing | Standard export packaging/customized |
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
