| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

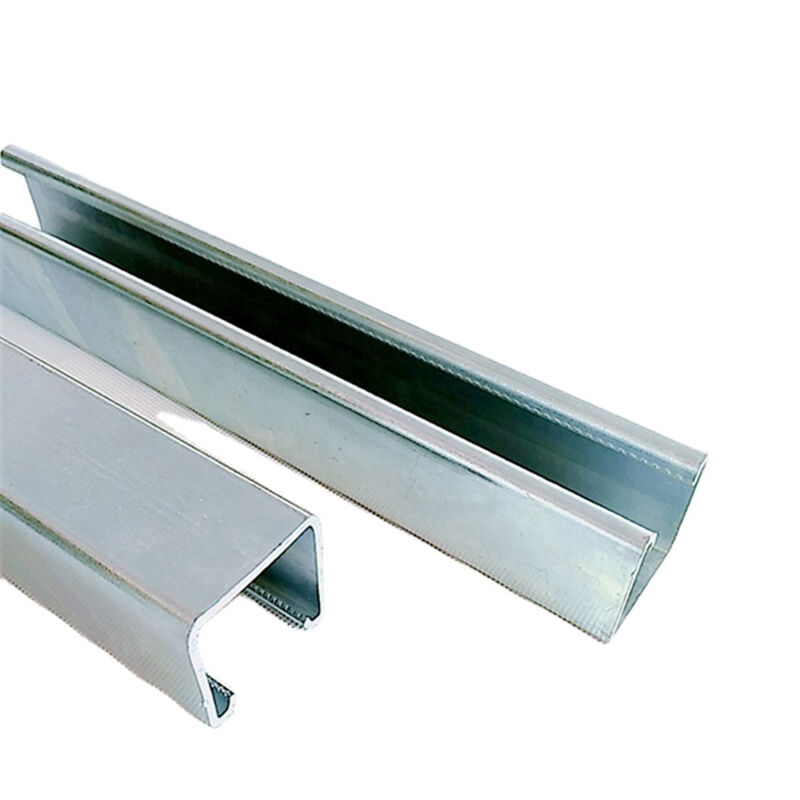

Customized Solid Slotted Strut Channel Pre Galvanized Steel Mounting Rail
Introduction

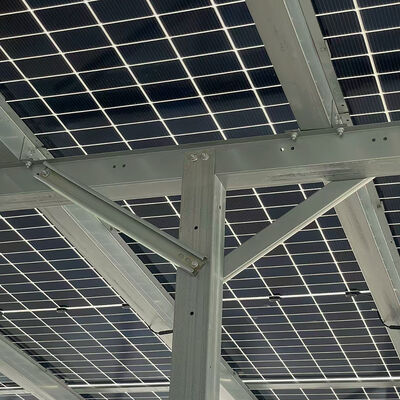

Our Customized Solid Slotted Strut Channel is a versatile pre‑galvanized steel mounting rail designed for flexible installation across electrical, construction, and equipment‑mounting applications. Combining a solid main body with precision‑slotted side walls, this channel balances structural strength and installation convenience. The pre‑galvanized surface offers reliable corrosion protection for indoor and dry outdoor environments, ensuring stable performance with low maintenance. We provide full customization services including length cutting, hole punching, bending, and labeling to meet project‑specific requirements. This channel is widely used for mounting solar components, electrical enclosures, lighting fixtures, signage systems, and production line equipment. Its hybrid design allows secure fastening while maintaining high rigidity, making it suitable for medium‑load support scenarios. Compatible with standard channel nuts and mounting brackets, it supports fast on‑site assembly and position adjustment. Manufactured under strict quality control, the channel features uniform thickness, smooth surfaces, and consistent mechanical properties. It is widely adopted in commercial fit‑out, industrial production lines, renewable energy installations, and facility maintenance projects.
Features
This channel features a unique solid‑slotted hybrid design that delivers both high structural strength and installation flexibility. Pre‑galvanized coating provides effective rust resistance and extends service life in indoor and mild outdoor environments. Customization options including length, hole pattern, and bending allow precise adaptation to diverse project needs. It offers excellent compatibility with standard mounting hardware, simplifying assembly and adjustment. The solid structure ensures stable load‑bearing performance, while slotted sides enable quick positioning and fastening. High‑quality steel ensures good durability, impact resistance, and resistance to deformation. Precision manufacturing ensures dimensional accuracy and consistent quality across batches. The product supports easy transportation and on‑site handling, reducing labor time and installation costs. It is lightweight yet strong, providing reliable support for various mounting applications with long‑term stability.
Specification
|
Item
|
Detailed Specification
|
|---|---|
|
Product Full Name
|
Solid Strut Channel, Solid Unistrut Channel, Solid C Channel Support Profile
|
|
Applicable Standard
|
PS200, ASTM, BS, DIN, Full Customization Available
|
|
Raw Material
|
Q235B / Q355B Carbon Steel; SS304 / SS316 Stainless Steel
|
|
Profile Dimension
|
41×21mm, 41×41mm, 41×61mm, Non-standard Custom Sizes
|
|
Plate Thickness
|
1.5mm, 2.0mm, 2.5mm, 3.0mm; 12GA, 14GA Industrial Gauge
|
|
Standard Length
|
2.95m, 3m, 5.8m, 6m, 10ft, 20ft; Custom Cut-to-Length Service
|
|
Product Structure
|
Full Solid Back / Unslotted Structure, One-piece Cold Rolled Forming, Heavy-duty Integral Molding
|
|
Surface Treatment
|
Pre-galvanized (PG), Hot Dip Galvanized (HDG), Electro-galvanized, Powder Coated, Stainless Steel Polishing
|
|
Zinc Coating Weight
|
Pre-galvanized: 40-80g/㎡; Hot Dip Galvanized: 550-850g/㎡
|
|
Custom Processing
|
Fixed-length cutting, precision punching, drilling, bending, welding, laser grooving, personalized fabrication
|
|
Yield Strength
|
≥235MPa (Q235 Steel), ≥355MPa (Q355 Steel)
|
|
Tensile Strength
|
≥330MPa (Q235 Steel), ≥470MPa (Q355 Steel)
|
|
Core Features
|
High structural rigidity, strong load-bearing capacity, anti-rust & anti-corrosion, impact resistance, no deformation, easy modular installation, low maintenance, long service life
|
|
Application Scenarios
|
Building construction support, seismic bracing system, pipe & conduit support, electrical installation, HVAC duct support, cable tray fixing, solar panel mounting, industrial equipment framing
|
|
Matching Accessories
|
Strut channel nuts, hex bolts, fixing brackets, pipe clamps, seismic connectors, mounting fasteners
|
|
Packaging Standard
|
Export-standard steel pallet + waterproof plastic film + woven bag, fully protected for long-distance shipping
|
|
MOQ
|
Negotiable, small trial orders & sample orders are acceptable
|
|
Sample Service
|
Free product samples available, customers only bear freight cost
|
|
Lead Time
|
7-15 working days after order deposit confirmation
|
|
Payment Terms
|
T/T, L/C, Western Union, Flexible Payment Options
|
|
Trade Terms
|
EXW, FOB, CFR, CIF, All International Trade Terms Supported
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
