| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |
olid Steel Strut Channel 41×21/41×41 for Electrical Conduit & Pipe Support
Introduction
Our Solid Steel Strut Channel is available in 41×21 and 41×41 profiles, specially designed for electrical conduit and piping support systems. These two standard sizes cover a wide range of light to heavy‑duty piping and electrical installation needs. Manufactured from high‑quality solid steel, the channels provide stable, durable support for water pipes, gas lines, electrical conduits, cable trays, and fire protection systems. The fully solid structure enhances load capacity and prevents sagging, ensuring long‑term stability for pipeline networks. Suitable for commercial buildings, industrial plants, residential complexes, and utility rooms, these channels ensure neat, organized, and secure routing of pipes and conduits. Both sizes are compatible with standard pipe clamps, conduit straps, and strut fittings, enabling fast, modular installation without welding. The durable protective coating resists corrosion and abrasion in various indoor environments. With high dimensional accuracy and reliable quality, they help improve installation efficiency and ensure compliance with electrical and plumbing codes.
Features
Available in 41×21 and 41×41 sizes, these solid strut channels provide flexible solutions for different load requirements in pipe and conduit support. Solid steel construction delivers excellent rigidity and load‑bearing capacity, preventing pipeline deformation and sagging. Full compatibility with standard clamps and fittings simplifies installation, adjustment, and maintenance. High‑quality steel ensures good durability, impact resistance, and long service life. Protective surface treatment resists rust and corrosion in humid utility spaces. Precision forming ensures consistent dimensions and reliable fitment. The channels support neat, organized pipeline layout and improve overall system safety. They feature easy handling, low maintenance, and strong versatility for electrical and plumbing projects. Stable performance and standardized design make them essential components for professional piping and electrical support systems.
Specification
|
Item
|
Detailed Specification
|
|---|---|
|
Product Full Name
|
Solid Strut Channel, Solid Unistrut Channel, Solid C Channel Support Profile
|
|
Applicable Standard
|
PS200, ASTM, BS, DIN, Full Customization Available
|
|
Raw Material
|
Q235B / Q355B Carbon Steel; SS304 / SS316 Stainless Steel
|
|
Profile Dimension
|
41×21mm, 41×41mm, 41×61mm, Non-standard Custom Sizes
|
|
Plate Thickness
|
1.5mm, 2.0mm, 2.5mm, 3.0mm; 12GA, 14GA Industrial Gauge
|
|
Standard Length
|
2.95m, 3m, 5.8m, 6m, 10ft, 20ft; Custom Cut-to-Length Service
|
|
Product Structure
|
Full Solid Back / Unslotted Structure, One-piece Cold Rolled Forming, Heavy-duty Integral Molding
|
|
Surface Treatment
|
Pre-galvanized (PG), Hot Dip Galvanized (HDG), Electro-galvanized, Powder Coated, Stainless Steel Polishing
|
|
Zinc Coating Weight
|
Pre-galvanized: 40-80g/㎡; Hot Dip Galvanized: 550-850g/㎡
|
|
Custom Processing
|
Fixed-length cutting, precision punching, drilling, bending, welding, laser grooving, personalized fabrication
|
|
Yield Strength
|
≥235MPa (Q235 Steel), ≥355MPa (Q355 Steel)
|
|
Tensile Strength
|
≥330MPa (Q235 Steel), ≥470MPa (Q355 Steel)
|
|
Core Features
|
High structural rigidity, strong load-bearing capacity, anti-rust & anti-corrosion, impact resistance, no deformation, easy modular installation, low maintenance, long service life
|
|
Application Scenarios
|

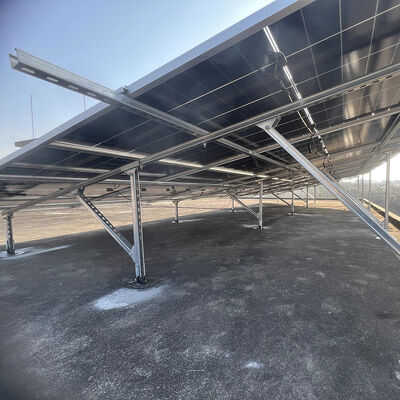

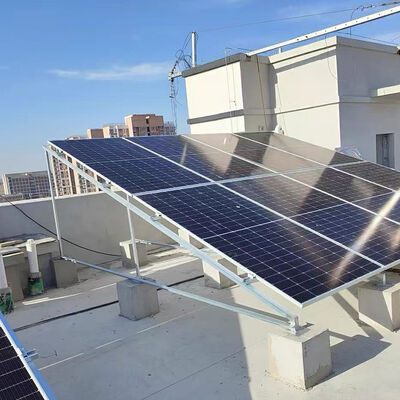

Building construction support, seismic bracing system, pipe & conduit support, electrical installation, HVAC duct support, cable tray fixing, solar panel mounting, industrial equipment framing
|
|
Matching Accessories
|
Strut channel nuts, hex bolts, fixing brackets, pipe clamps, seismic connectors, mounting fasteners
|
|
Packaging Standard
|
Export-standard steel pallet + waterproof plastic film + woven bag, fully protected for long-distance shipping
|
|
MOQ
|
Negotiable, small trial orders & sample orders are acceptable
|
|
Sample Service
|
Free product samples available, customers only bear freight cost
|
|
Lead Time
|
7-15 working days after order deposit confirmation
|
|
Payment Terms
|
T/T, L/C, Western Union, Flexible Payment Options
|
|
Trade Terms
|
EXW, FOB, CFR, CIF, All International Trade Terms Supported
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
