| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

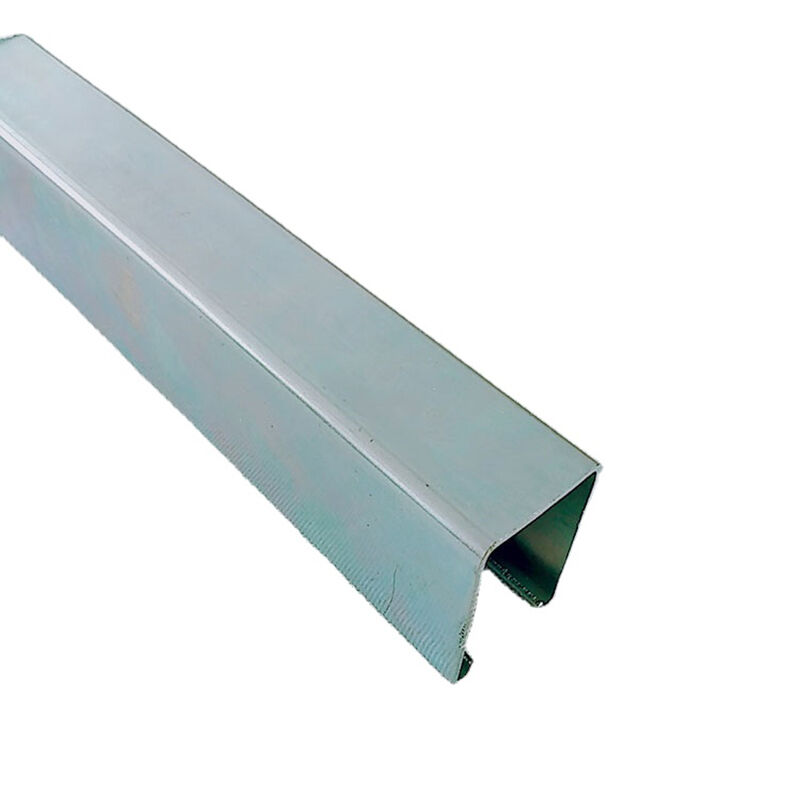

12 Gauge Solid Strut Channel PS 200 Standard Metal Framing Channel
Introduction
Our 12 Gauge Solid Strut Channel conforming to PS 200 standards is a professional metal framing channel designed for consistent, reliable structural support. Manufactured from 12‑gauge high‑strength steel, this channel delivers balanced weight and rigidity for general industrial and construction framing. The solid web design enhances overall stability and load distribution, making it suitable for machine bases, workbenches, support frames, and modular structures. It complies with PS 200 specifications to ensure interchangeability with industry‑standard fittings and systems. The channel is available in standard lengths and can be cut or modified on site to meet layout requirements. Its durable protective coating resists scratches, corrosion, and daily wear, maintaining appearance and performance in workshops, factories, and commercial buildings. With uniform cross‑section and high dimensional accuracy, it ensures stable assembly and long service life. Ideal for constructing modular frameworks, equipment supports, safety barriers, and storage systems, this channel provides a cost‑effective, standardized solution for professional metal framing.
Features
This 12‑gauge solid channel offers excellent strength‑to‑weight ratio, supporting moderate to heavy loads while remaining easy to handle and install. Full compliance with PS 200 standards guarantees compatibility with a wide range of standard accessories and framing systems. The solid structure improves rigidity and reduces flexing under load, ensuring stable and durable framing. High‑quality steel material provides good tensile strength, impact resistance, and long‑term durability. Protective surface treatment enhances corrosion resistance and extends service life. Precision cold forming ensures consistent dimensions, smooth edges, and reliable fitment. It supports modular assembly without welding, enabling fast construction and future reconfiguration. The channel features low maintenance requirements and strong resistance to daily wear and tear. Standardized sizing ensures cost‑effective production and easy replacement, making it a practical choice for various framing applications.
Specification
|
Item
|
Detailed Specification
|
|---|---|
|
Product Full Name
|
Solid Strut Channel, Solid Unistrut Channel, Solid C Channel Support Profile
|
|
Applicable Standard
|
PS200, ASTM, BS, DIN, Full Customization Available
|
|
Raw Material
|
Q235B / Q355B Carbon Steel; SS304 / SS316 Stainless Steel
|
|
Profile Dimension
|

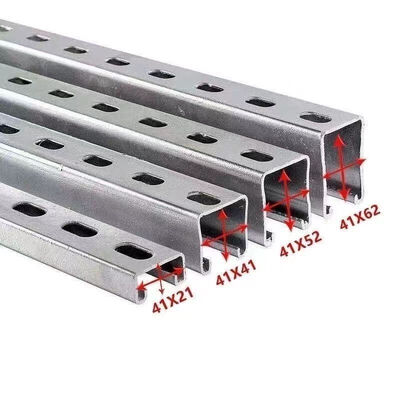

41×21mm, 41×41mm, 41×61mm, Non-standard Custom Sizes
|
|
Plate Thickness
|
1.5mm, 2.0mm, 2.5mm, 3.0mm; 12GA, 14GA Industrial Gauge
|
|
Standard Length
|
2.95m, 3m, 5.8m, 6m, 10ft, 20ft; Custom Cut-to-Length Service
|
|
Product Structure
|
Full Solid Back / Unslotted Structure, One-piece Cold Rolled Forming, Heavy-duty Integral Molding
|
|
Surface Treatment
|
Pre-galvanized (PG), Hot Dip Galvanized (HDG), Electro-galvanized, Powder Coated, Stainless Steel Polishing
|
|
Zinc Coating Weight
|
Pre-galvanized: 40-80g/㎡; Hot Dip Galvanized: 550-850g/㎡
|
|
Custom Processing
|
Fixed-length cutting, precision punching, drilling, bending, welding, laser grooving, personalized fabrication
|
|
Yield Strength
|
≥235MPa (Q235 Steel), ≥355MPa (Q355 Steel)
|
|
Tensile Strength
|
≥330MPa (Q235 Steel), ≥470MPa (Q355 Steel)
|
|
Core Features
|
High structural rigidity, strong load-bearing capacity, anti-rust & anti-corrosion, impact resistance, no deformation, easy modular installation, low maintenance, long service life
|
|
Application Scenarios
|
Building construction support, seismic bracing system, pipe & conduit support, electrical installation, HVAC duct support, cable tray fixing, solar panel mounting, industrial equipment framing
|
|
Matching Accessories
|
Strut channel nuts, hex bolts, fixing brackets, pipe clamps, seismic connectors, mounting fasteners
|
|
Packaging Standard
|
Export-standard steel pallet + waterproof plastic film + woven bag, fully protected for long-distance shipping
|
|
MOQ
|
Negotiable, small trial orders & sample orders are acceptable
|
|
Sample Service
|
Free product samples available, customers only bear freight cost
|
|
Lead Time
|
7-15 working days after order deposit confirmation
|
|
Payment Terms
|
T/T, L/C, Western Union, Flexible Payment Options
|
|
Trade Terms
|
EXW, FOB, CFR, CIF, All International Trade Terms Supported
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
