| Brand Name: | Jiucan Metal |
| MOQ: | 500 pcs |
| Price: | Discuss |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50 to 80+ tons/day |

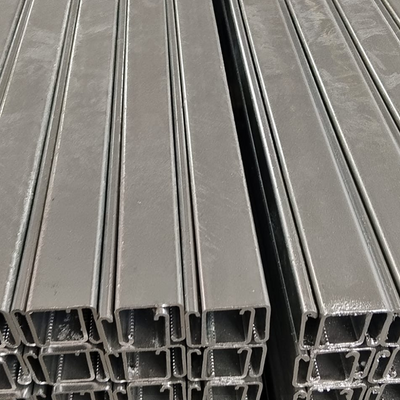

High Strength Solid C Strut Channel Zinc Coated for Solar Panel Mounting System
Introduction
Our High Strength Solid C Strut Channel is a zinc‑coated structural component specially optimized for solar panel mounting systems. Engineered to support long‑term outdoor exposure, this channel provides stable, reliable support for photovoltaic panels in ground‑mount, rooftop, and agricultural solar installations. Made from high‑strength cold‑rolled steel, the solid C‑shaped profile delivers exceptional wind and snow load resistance, ensuring panel stability under extreme weather conditions. The zinc‑coated surface offers durable anti‑corrosion protection, resisting oxidation, rain, and UV radiation for extended service life. Its standardized design ensures compatibility with solar brackets, clamps, and grounding components, enabling quick and secure installation. The channel can be cut to length and adjusted on site to match different panel layouts and roof slopes. With high dimensional accuracy and consistent quality, it helps improve installation efficiency and reduce project delays. Suitable for commercial solar farms, residential rooftop systems, and utility‑scale PV plants, this strut channel combines strength, durability, and weather resistance to support reliable solar energy generation.
Features
This solid C strut channel provides exceptional structural strength to withstand high wind, snow, and temperature fluctuations in solar applications. Zinc coating delivers reliable corrosion resistance for long‑term outdoor use, reducing maintenance needs. High‑strength steel material ensures excellent load capacity and resistance to deformation. The solid design enhances stability and minimizes vibration, protecting solar panels and mounting structures. It offers full compatibility with solar mounting accessories, supporting fast, modular installation. Precision manufacturing ensures accurate dimensions and consistent performance across projects. The channel is lightweight yet durable, lowering transportation and labor costs. It features good weatherability, UV resistance, and long service life, matching the 25‑year design life of solar systems. Its reliable performance makes it a trusted component for professional solar mounting solutions.
Specification
|
Item
|
Detailed Specification
|
|---|---|
|
Product Full Name
|
Solid Strut Channel, Solid Unistrut Channel, Solid C Channel Support Profile
|
|
Applicable Standard
|
PS200, ASTM, BS, DIN, Full Customization Available
|
|
Raw Material
|
Q235B / Q355B Carbon Steel; SS304 / SS316 Stainless Steel
|
|
Profile Dimension
|
41×21mm, 41×41mm, 41×61mm, Non-standard Custom Sizes
|
|
Plate Thickness
|
1.5mm, 2.0mm, 2.5mm, 3.0mm; 12GA, 14GA Industrial Gauge
|
|
Standard Length
|
2.95m, 3m, 5.8m, 6m, 10ft, 20ft; Custom Cut-to-Length Service
|
|
Product Structure
|
Full Solid Back / Unslotted Structure, One-piece Cold Rolled Forming, Heavy-duty Integral Molding
|
|
Surface Treatment
|
Pre-galvanized (PG), Hot Dip Galvanized (HDG), Electro-galvanized, Powder Coated, Stainless Steel Polishing
|
|
Zinc Coating Weight
|
Pre-galvanized: 40-80g/㎡; Hot Dip Galvanized: 550-850g/㎡
|
|
Custom Processing
|
Fixed-length cutting, precision punching, drilling, bending, welding, laser grooving, personalized fabrication
|
|
Yield Strength
|
≥235MPa (Q235 Steel), ≥355MPa (Q355 Steel)
|
|
Tensile Strength
|
≥330MPa (Q235 Steel), ≥470MPa (Q355 Steel)
|
|
Core Features
|
High structural rigidity, strong load-bearing capacity, anti-rust & anti-corrosion, impact resistance, no deformation, easy modular installation, low maintenance, long service life
|
|
Application Scenarios
|
Building construction support, seismic bracing system, pipe & conduit support, electrical installation, HVAC duct support, cable tray fixing, solar panel mounting, industrial equipment framing
|
|
Matching Accessories
|
Strut channel nuts, hex bolts, fixing brackets, pipe clamps, seismic connectors, mounting fasteners
|
|
Packaging Standard
|
Export-standard steel pallet + waterproof plastic film + woven bag, fully protected for long-distance shipping
|
|
MOQ
|
Negotiable, small trial orders & sample orders are acceptable
|
|
Sample Service
|
Free product samples available, customers only bear freight cost
|
|
Lead Time
|
7-15 working days after order deposit confirmation
|
|
Payment Terms
|
T/T, L/C, Western Union, Flexible Payment Options
|
|
Trade Terms
|
EXW, FOB, CFR, CIF, All International Trade Terms Supported
|
FAQ
Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.
Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
