Solar Mounting Bracket Base Galvanized Steel ISO9001 1.2–2.0kN/㎡ Snow Load

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Solar Mounting Bracket Base

Material:

Q195/Q235/Steel

Surface Treatment:

Hot Dip Galvanized (HDG)

Thickness:

3-6mm/ Customized

Compatible Channel:

41×41mm Strut Channel

Hole Type:

Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern

Hole Spacing:

40mm / 50mm / Standard 47.6mm

Working Load:

150kg–800kg (According To Thickness & Structure)

Snow Load:

1.2–2.0kN/㎡

Size:

Standard Size

Tolerance:

±3%

Packing:

Standard Export Packing

Sample:

Free

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

galvanized solar mount base

galvanized solar mounting bracket

iso9001 solar mount base

Product Description

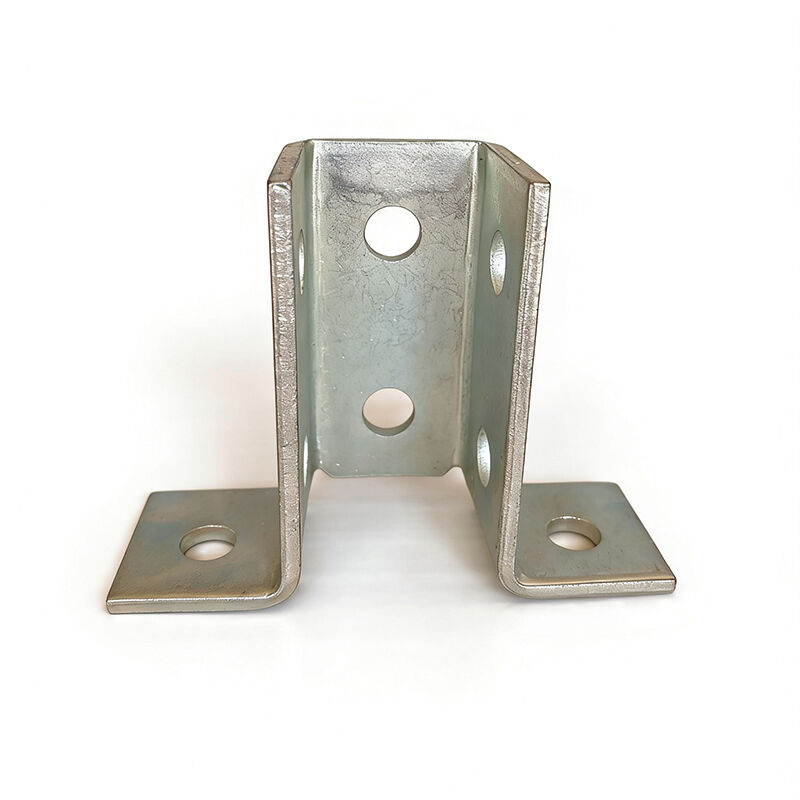

Solar Mounting Bracket Base Galvanized Steel

Introduction

Our galvanized steel solar mounting bracket base is a robust foundational component designed for reliable photovoltaic system installation. Made from high-strength Q235B carbon steel with hot-dip galvanized surface treatment, it provides exceptional structural stability and long-term anti-corrosion performance. This base serves as the critical support between solar mounting rails and ground or roof foundations, evenly distributing panel weight, wind pressure and snow load to protect the entire PV system. It is widely applied in residential rooftop solar, commercial solar farms, ground-mounted power stations and industrial photovoltaic projects. Compatible with standard aluminum and steel mounting rails, it features pre-punched holes for fast bolt-on assembly without on-site modification. Each base undergoes load testing and quality inspection to meet international solar engineering standards, ensuring stable operation in outdoor environments for over 15 years. It is an economical and durable solution for secure solar panel mounting.

Features

This solar mounting base features heavy-duty galvanized steel construction for superior strength and deformation resistance. The thick hot-dip galvanized coating effectively resists rust, oxidation and weather erosion, extending service life in harsh outdoor conditions. Precisely punched holes ensure accurate alignment with mounting rails, enabling quick and easy installation to save labor time. Its stable structural design evenly distributes dynamic loads, enhancing wind resistance and seismic performance of the PV system. The universal size fits most mainstream solar mounting systems, improving project compatibility and reducing accessory types. With high rigidity and low maintenance requirements, it maintains stable performance under long-term outdoor exposure. It provides reliable foundational support for solar panels, ensuring safe and efficient operation of photovoltaic systems.

Specification

Item	Specification Details
Product Name	Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material	Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment	Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size	100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness	3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel	41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type	Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing	40mm / 50mm / 60mm / Standard 47.6mm
Working Load	150kg–800kg (According to thickness & structure)
Wind Pressure Resistance	Up to 60m/s (Customizable for high wind area)
Snow Load	1.2–2.0kN/㎡
Temperature Range	-40℃ ~ +120℃
Anti-Corrosion Grade	HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type	Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification	ISO9001, CE, SGS, TUV Test Report Available
Application	Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ	100pcs / Accept Small Trial Order
OEM & ODM	Size, Thickness, Logo, Packaging All Customizable
Packing	Carton + Pallet; Custom Packing Acceptable
Service Life	20–30 years

Solar Mounting Bracket Base Galvanized Steel ISO9001 1.2–2.0kN/㎡ Snow Load

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
