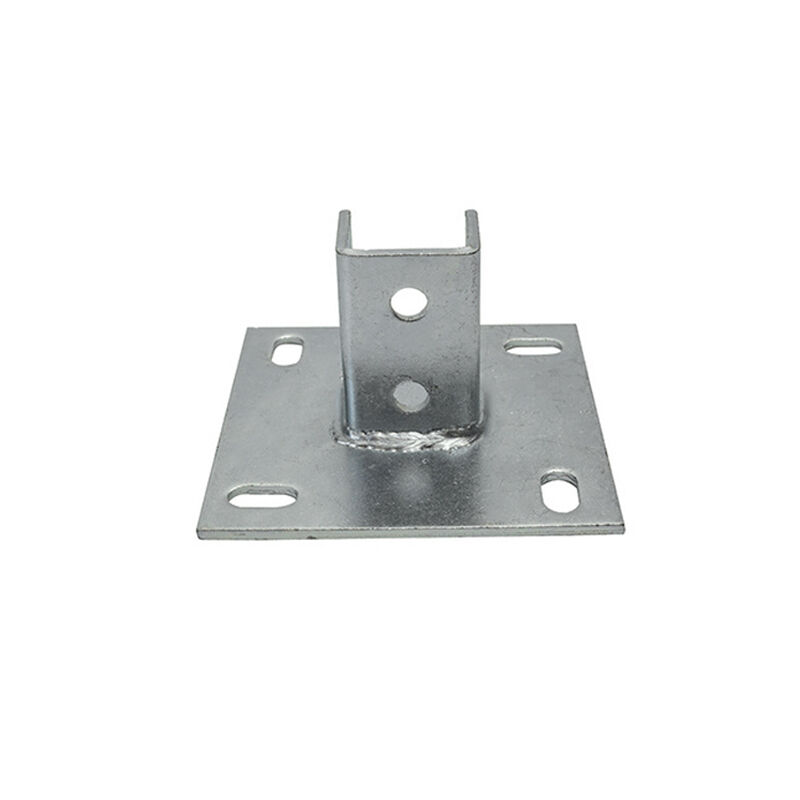

PV Panel Mount Base Heavy Duty Support Base Q235 Steel Material

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

PV Mount Base

Material:

Q235/Steel

Surface Treatment:

Hot Dip Galvanized (HDG)

Thickness:

4-6mm/ Customized

Compatible Channel:

41×21mm Strut Channel

Hole Type:

Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern

Hole Spacing:

40mm / 50mm / Standard 47.6mm

Working Load:

150kg–800kg (According To Thickness & Structure)

Snow Load:

1.2–2.0kN/㎡

Size:

Standard Size

Tolerance:

±3%

Packing:

Standard Export Packing

Sample:

Free

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

PV Panel Mount Base

solar panel mount base

Heavy Duty Support PV Base

Product Description

PV Panel Mount Base Heavy Duty Support Base

Introduction

This heavy-duty PV panel mount base is engineered for large-scale solar power stations and high-load installation scenarios. Constructed with thickened high-strength steel, it delivers outstanding load-bearing capacity to support large photovoltaic panels and mounting structures. Ideal for ground-mounted solar farms, industrial rooftops and open-field photovoltaic projects, it effectively withstands strong winds, heavy snow accumulation and extreme weather impacts. The reinforced structural design prevents bending, twisting and structural fatigue, ensuring long-term stability of the entire mounting system. Hot-dip galvanized surface treatment provides full anti-corrosion protection, making it suitable for coastal, industrial and high-humidity environments. Compatible with standard solar rails and mounting components, it supports modular assembly and large-scale project construction. Each unit is manufactured under strict quality control and load testing to meet international PV engineering specifications. It offers a dependable heavy-duty support solution for long-life solar energy systems.

Features

The heavy-duty PV mount base boasts ultra-high load-bearing capacity and excellent structural rigidity. Thickened steel material enhances resistance to bending and compression, ensuring stability under extreme weather conditions. The full hot-dip galvanized surface delivers superior anti-corrosion performance, resisting salt spray, moisture and chemical pollutants. Reinforced edges and optimized stress distribution improve overall durability and fatigue resistance. Standardized hole positions allow fast, tool-friendly installation, boosting on-site construction efficiency. Its universal design matches most solar rail systems, supporting flexible project layout and adjustment. The base effectively isolates the mounting structure from foundations, reducing vibration and structural damage. With reliable stability and low maintenance costs, it provides secure heavy-duty support for long-term operation of commercial and industrial solar power systems.

Specification

Item	Specification Details
Product Name	Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material	Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment	Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size	100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness	3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel	41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type	Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing	40mm / 50mm / 60mm / Standard 47.6mm
Working Load	150kg–800kg (According to thickness & structure)
Wind Pressure Resistance	Up to 60m/s (Customizable for high wind area)
Snow Load	1.2–2.0kN/㎡
Temperature Range	-40℃ ~ +120℃
Anti-Corrosion Grade	HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type	Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification	ISO9001, CE, SGS, TUV Test Report Available
Application	Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ	100pcs / Accept Small Trial Order
OEM & ODM	Size, Thickness, Logo, Packaging All Customizable
Packing	Carton + Pallet; Custom Packing Acceptable
Service Life	20–30 years

PV Panel Mount Base Heavy Duty Support Base Q235 Steel Material

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
