Galvanized Steel Pv Panel Mounting Brackets durable For PV Racking System

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

Solar Mounting Bracket

Material:

Q195/Steel

Surface Treatment:

Hot Dip Galvanized

Type:

C/U Channel

Compatible Profile:

41×21 Strut Channel

Thickness:

0.8-3mm/Customized

Load Capacity:

300kg – 600kg

Application:

Solar Racking, PV Panel Mount, Ground & Roof Solar System

Size:

Standard Size

Tolerance:

±3%

Process Service:

Cutting ,Punching

Packaging Details:

50 Or 100PCS Are Packed In Steel Pallet , And Fasten With Steel Strips

Highlight:

pv panel mounting brackets durable

galvanized pv mounting brackets

galvanized pv panel mounting brackets

Product Description

Galvanized Steel Solar Bracket for PV Racking System

Introduction

This galvanized steel solar bracket is a heavy-duty supporting structure designed for stable and durable photovoltaic racking systems. Manufactured from high-strength Q235B carbon steel with hot-dip galvanized surface treatment, it offers outstanding rigidity, load-bearing capacity and anti-corrosion performance. The bracket is widely applied in large-scale solar farms, ground PV stations, industrial rooftops and outdoor photovoltaic projects. It forms a stable support frame for solar panels, effectively withstanding strong wind, heavy snow and long-term outdoor weathering. Standardized components and pre-sized holes allow fast bolt assembly, shortening installation time and lowering labor cost. Each part undergoes strict load testing and quality inspection to meet international safety standards. With strong structural stability and low failure rate, it provides reliable long-term support for PV systems and reduces maintenance frequency. It is a cost-effective and durable solution for various photovoltaic racking installations.

Features

The solar bracket adopts heavy-duty galvanized steel structure for high strength and deformation resistance. Thick hot-dip galvanized coating provides full anti-corrosion protection, resisting rust, humidity and salt spray. Stable frame design improves overall wind resistance and seismic performance, ensuring panel safety under extreme weather. Standardized dimensions ensure wide compatibility with most PV panels and mounting accessories. Easy bolt-on installation improves construction efficiency without on-site modification. High durability ensures stable performance for over 20 years in outdoor environments. Low maintenance and strong reliability reduce system operating cost. It is widely suitable for large-scale and long-service-life solar energy projects, providing stable and secure support for photovoltaic racking systems.

Specification

Parameter	Specification Details
Product Name	Solar Mounting Bracket, PV Panel Support, Solar Racking Structure
Material	AL6005-T5 Aluminum Alloy; Q235B Hot Dip Galvanized Steel
Surface Treatment	Anodized (Aluminum); Hot Dip Galvanized (Steel); Pre-galvanized
Structure Type	Fixed, Adjustable, Roof Mount, Ground Mount, Universal Type
Suitable Panel	150W–700W Monocrystalline & Polycrystalline PV Panels
Adjustable Angle	0°–60° (adjustable type); Fixed (custom angle)
Wind Load Resistance	Up to 60m/s (130mph)
Snow Load Capacity	1.2–2.0 kN/㎡
Panel Orientation	Portrait / Landscape
Installation Type	Bolt Fastening, Modular Assembly, No Welding
Application	Residential Rooftop, Commercial Roof, Solar Farm, Ground PV Station
Working Temperature	-40℃ ~ +120℃
Service Life	Aluminum: 25–30 years; Galvanized Steel: 20–25 years
Certification	ISO9001, CE, TUV, SGS Test Report Available
Standard Length	Customizable according to panel size
Thickness	Aluminum: 1.8–3.0mm; Steel: 2.0–4.0mm
MOQ	100 sets / Small trial order acceptable
OEM & ODM	Size, hole, color, logo, packaging all customizable
Packing	Carton + Pallet; Custom packaging support
Supply Ability	Mass production, factory wholesale, fast delivery

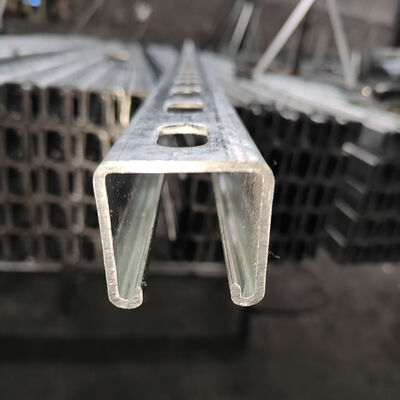

Galvanized Steel Pv Panel Mounting Brackets durable For PV Racking System

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
