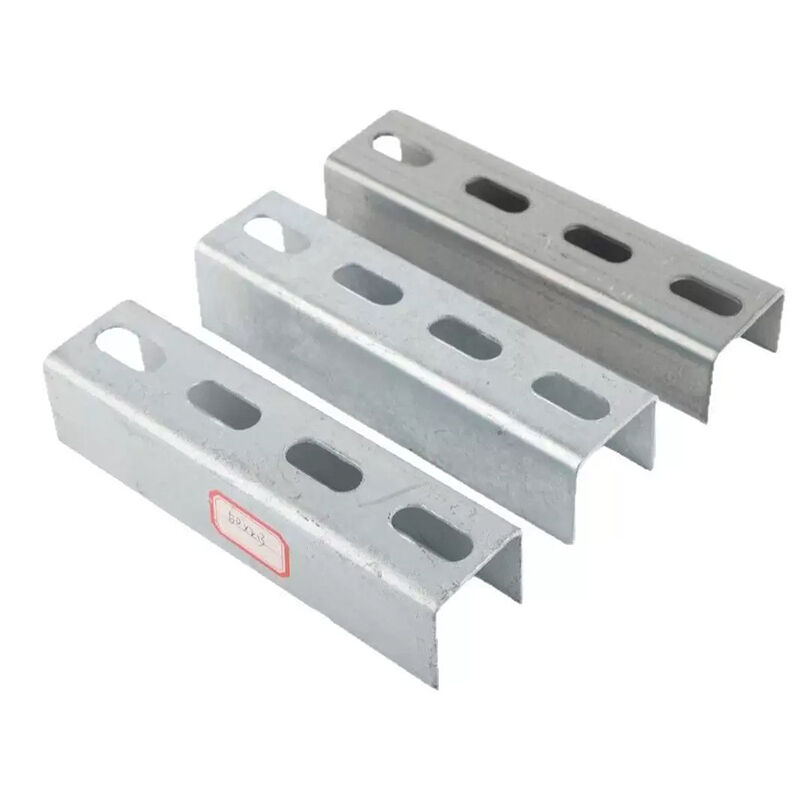

Q195 Steel Solar Pv Mounting Brackets Joint For Solar Racking System

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

PV Racking Connector

Material:

Q195/Steel

Surface Treatment:

Hot Dip Galvanized

Type:

Fixed Joint

Compatible Profile:

Standard Solar Mount Rails, 41×41 Strut Channel

Thickness:

0.8-3mm/Customized

Load Capacity:

200kg – 600kg

Application:

Solar Racking, PV Panel Mount, Ground & Roof Solar System

Size:

Standard Size/ Customized

Tolerance:

±3%

Process Service:

Cutting ,Punching

Packaging Details:

Pack according to the product size/Customized

Highlight:

3mm pv panel mounting brackets

3mm solar pv mounting brackets

roof pv panel mounting brackets

Product Description

PV Panel Mount Bracket Joint for Solar Racking System

Introduction

This PV panel mount bracket joint is a professional connecting fitting specially designed for complete solar racking systems. Constructed from high-quality galvanized steel, it delivers reliable strength and stable connection performance for various photovoltaic installations. It serves as a critical connector between mounting rails, support legs and cross beams, ensuring overall structural integrity and stability of the solar system. Suitable for rooftop PV systems, ground solar farms and industrial photovoltaic projects, it effectively withstands dynamic loads such as wind pressure, snow accumulation and temperature changes. The standardized structural design ensures good compatibility with most solar mounting components, supporting modular assembly and large-scale project construction. Electro-galvanized or hot-dip galvanized surface treatment provides effective anti-corrosion protection for long-term outdoor use. Each product is manufactured under strict quality control to meet international PV standards, offering a dependable connecting solution for modern solar racking systems.

Features

The PV mount bracket joint features robust structural design for excellent connection stability and load-bearing capacity. High-quality steel material ensures strong resistance to bending, twisting and fatigue damage. Standardized dimensions and hole spacing allow universal matching with most solar racking components, supporting flexible system layout. Anti-corrosion surface treatment effectively resists moisture, dust and outdoor aging, ensuring long service life. Simple bolt-fixed installation improves construction efficiency and reduces on-site processing. Its stable connecting structure disperses stress evenly, enhancing overall system safety and durability. The compact design saves installation space while maintaining strong supporting performance. With reliable quality and cost-effective price, it is an ideal connecting component for efficient and stable solar photovoltaic systems.

Specification

Parameter	Details
Product Name	Solar Mounting Bracket Joint, PV Racking Connector, Solar Structure Joint
Material	Q235B Steel, AL6005-T5 Aluminum Alloy
Surface Treatment	Hot Dip Galvanized, Pre-Galvanized, Anodized
Type	Fixed Joint, Adjustable Joint, Corner Joint
Compatible Profile	Standard Solar Mount Rails, 41×21 / 41×41 Strut Channel
Hole Specification	Round Hole φ11 / φ13.5; Slotted Adjustment Hole
Thickness	2.5mm, 3.0mm, 4.0mm, 5.0mm
Load Capacity	200kg – 600kg
Wind Load	Up to 60m/s
Snow Load	1.2 – 2.0 kN/㎡
Working Temperature	-40℃ ~ +120℃
Adjustable Angle	Fixed / 0°–90° adjustable
Installation	Bolt Fastening, Tool-Free Assembly
Application	Solar Racking, PV Panel Mount, Ground & Roof Solar System
Service Life	20–30 years
Certification	ISO9001, CE, TUV, SGS Test Report
MOQ	100pcs, Small Trial Order Acceptable
OEM / ODM	Size, Hole, Thickness, Logo Customizable
Packing	Carton + Pallet

Q195 Steel Solar Pv Mounting Brackets Joint For Solar Racking System

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
