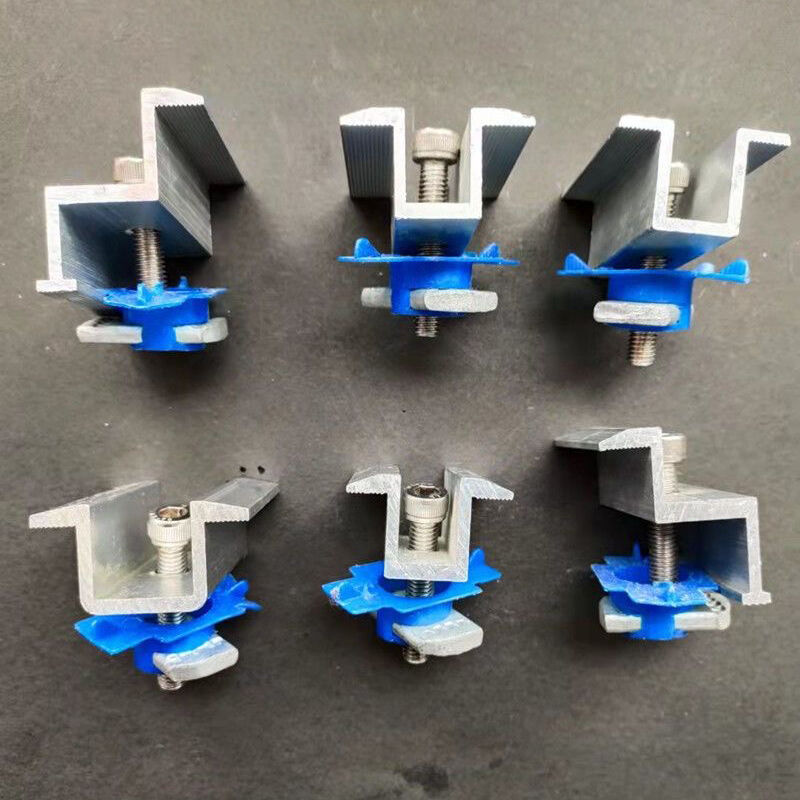

AL6005-T5 Solar Panel Mid Clamps End Clamp For Mounting System

Brand Name:	Jiucan Metal
MOQ:	500 pcs
Price:	Discuss
Payment Terms:	T/T, T/T
Supply Ability:	50 to 80+ tons/day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO9001

Product Name:

PV Panel Support

Material:

AL6005-T5 Aluminum Alloy

Compatible Profile:

Solar PV System

Thickness:

2.0mm–4.0mm

Size:

Standard Size

Tolerance:

±3%

Process Service:

Cutting ,Punching

Sample:

Free

Delivery Date:

15 Days

Packing:

Standard Export Packing

Length:

30-60mm /According To The Customer's Requirements

Packaging Details:

Pack According To The Product Size/Customized

Highlight:

pv solar panel clamps

60mm solar panel clamps

pv solar panel mid clamps

Product Description

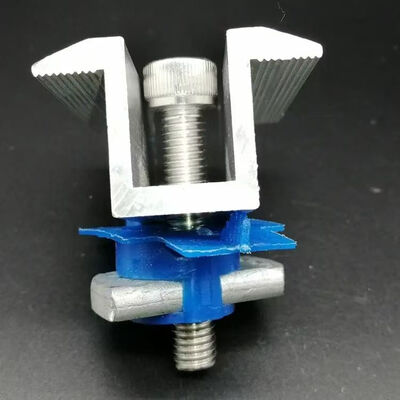

Solar Panel Mid Clamp End Clamp for Mounting System

Introduction

This solar panel mid clamp and end clamp set is a complete fastening solution for photovoltaic mounting systems. Manufactured from premium aluminum alloy with standardized design, it includes mid clamps for panel-to-panel connection and end clamps for edge fixing, forming a fully integrated panel array. The clamps are widely applied in various solar installations, ensuring even force distribution and stable panel fixing. Compatible with most aluminum mounting rails and framed PV panels, they feature pre-set holes for quick bolt assembly. Anti-corrosion anodized treatment ensures long-term durability in outdoor, humid and coastal environments. Each set is produced under strict quality control to ensure consistent size and reliable performance. With reasonable structure and convenient installation, they effectively improve system stability and wind resistance. This clamp set is an indispensable accessory for efficient and standardized solar panel installation.

Features

The mid and end clamp set provides complete panel fixing with uniform stress distribution and high stability. High-quality aluminum alloy ensures strong clamping force and long service life. Anodized surface resists rust, UV radiation and weather erosion for outdoor durability. Standardized design ensures perfect matching with most mounting rails and PV panels. Simple structure enables quick installation and easy adjustment. Mid clamps realize seamless panel arrangement while end clamps provide edge protection. Stable clamping avoids panel shaking and damage under wind and snow load. Lightweight and durable, they reduce system weight without compromising safety. It is a reliable and cost-effective fastening solution for complete solar mounting systems.

Specification

Parameter	Specification Details
Product Name	Solar Mounting Bracket, PV Panel Support, Solar Racking Structure
Material	AL6005-T5 Aluminum Alloy; Q235B Hot Dip Galvanized Steel
Surface Treatment	Anodized (Aluminum); Hot Dip Galvanized (Steel); Pre-galvanized
Structure Type	Fixed, Adjustable, Roof Mount, Ground Mount, Universal Type
Suitable Panel	150W–700W Monocrystalline & Polycrystalline PV Panels
Adjustable Angle	0°–60° (adjustable type); Fixed (custom angle)
Wind Load Resistance	Up to 60m/s (130mph)
Snow Load Capacity	1.2–2.0 kN/㎡
Panel Orientation	Portrait / Landscape
Installation Type	Bolt Fastening, Modular Assembly, No Welding
Application	Residential Rooftop, Commercial Roof, Solar Farm, Ground PV Station
Working Temperature	-40℃ ~ +120℃
Service Life	Aluminum: 25–30 years; Galvanized Steel: 20–25 years
Certification	ISO9001, CE, TUV, SGS Test Report Available
Standard Length	Customizable according to panel size
Thickness	Aluminum: 1.8–3.0mm; Steel: 2.0–4.0mm
MOQ	100 sets / Small trial order acceptable
OEM & ODM	Size, hole, color, logo, packaging all customizable
Packing	Carton + Pallet; Custom packaging support
Supply Ability	Mass production, factory wholesale, fast delivery

AL6005-T5 Solar Panel Mid Clamps End Clamp For Mounting System

FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
